Feature:

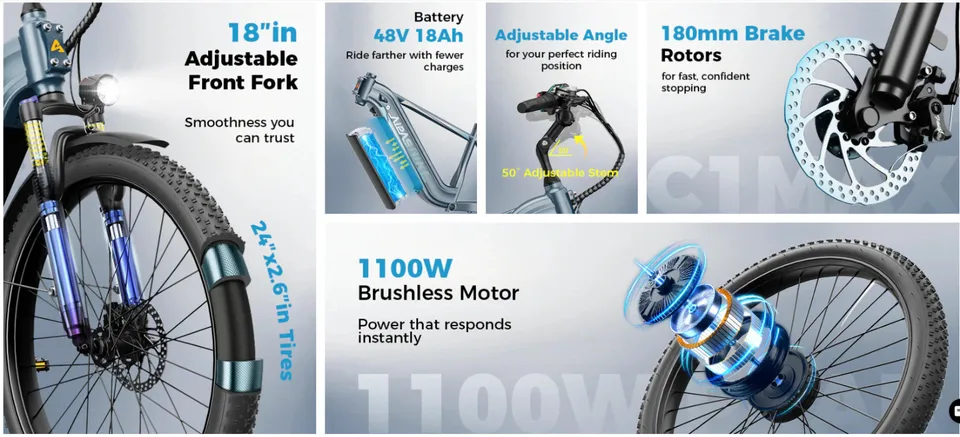

【1100W Brushless Motor & 5-Level PAS】
Powerful 1100W brushless DC motor paired with 5-level pedal assist. Delivers up to 90Nm torque at PAS 1 and hits 28+ MPH at PAS 5. Sine-wave controller ensures smooth, responsive power, while 4000+ RPM performance brings low noise, low interference, and excellent heat resistance.
【48V 18Ah High-Safety Battery】
Equipped with a 48V 18Ah battery certified to MSDS, UN38.3, UN3171, UN3480, and SGS UL2271 standards. Scientifically optimized internal layout and upgraded thermal protection prevent thermal runaway, safe up to 149°F. Built-in overheat shutoff controller ensures reliable, worry-free rides.

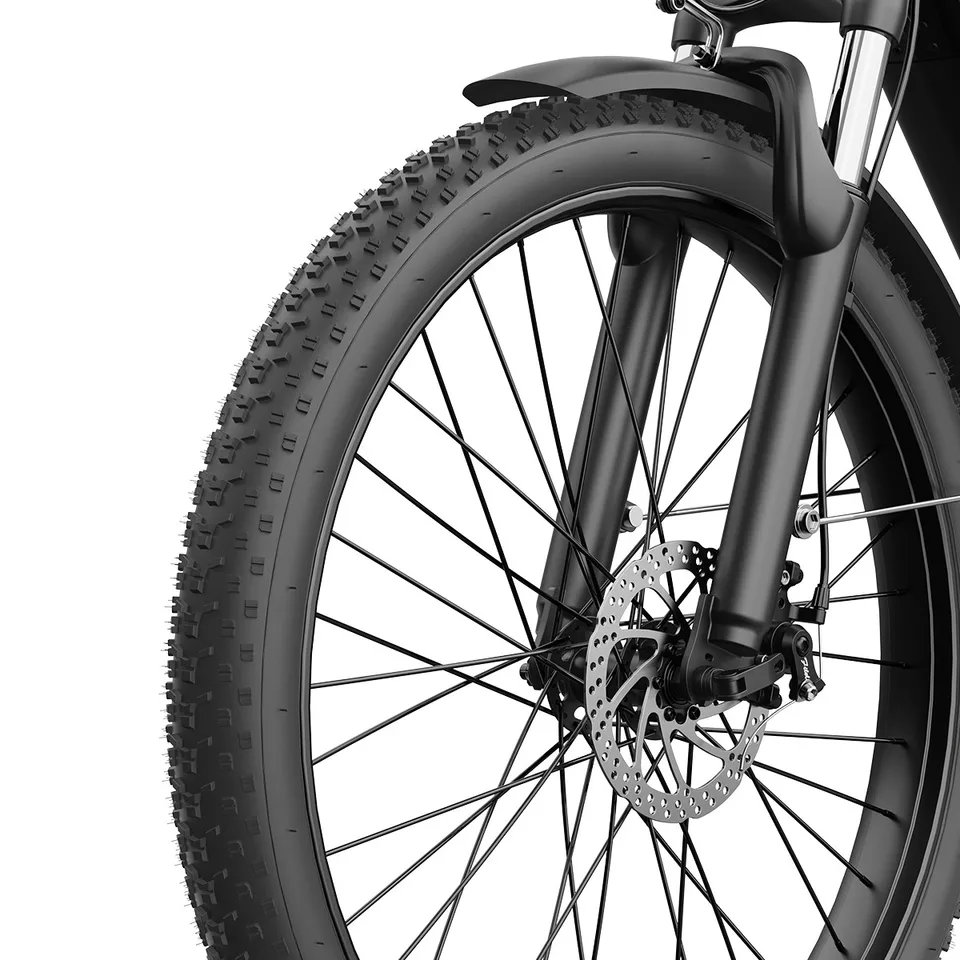

【All-Terrain 24"×2.6" Tires】
24" × 2.6" wide all-terrain tires balance agility and long range. Reinforced with a puncture-resistant liner, giving you extra confidence on city roads, gravel paths, and rough terrain.

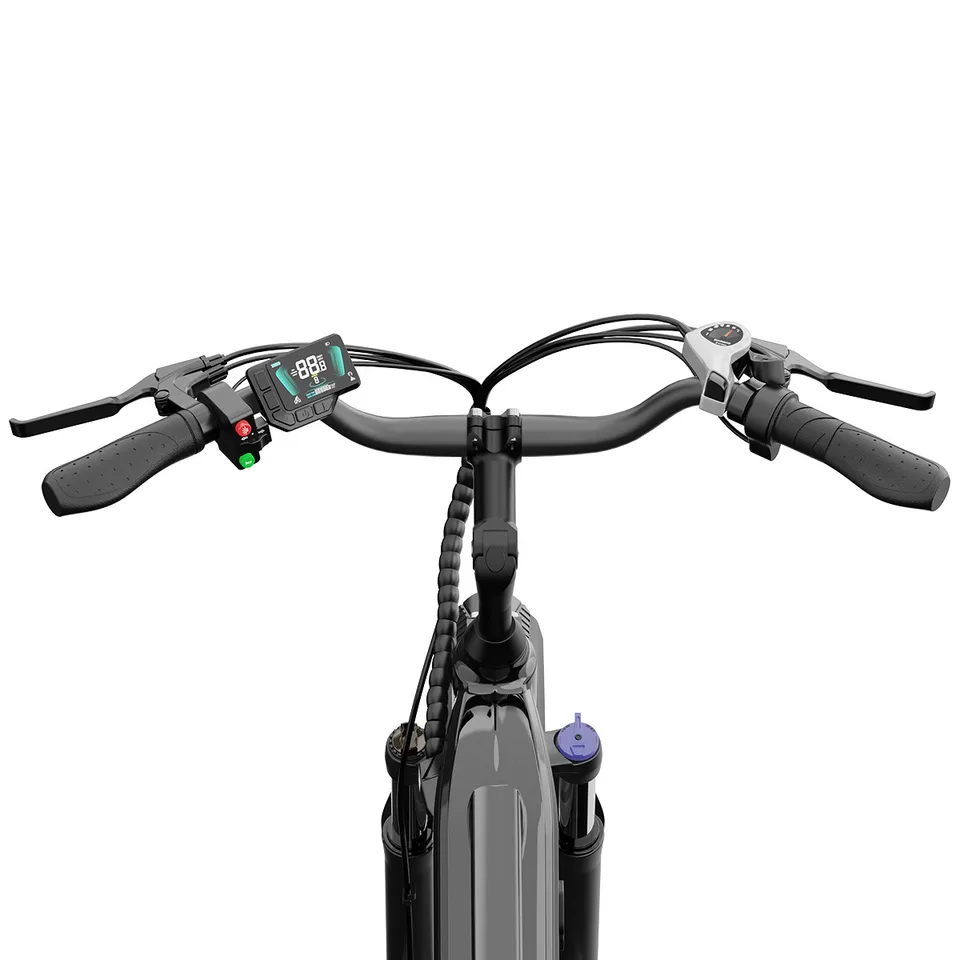

【Adjustable Stem for Ergonomic Comfort】
50° adjustable stem raises handlebar height by up to 4 inches vs. previous versions. Creates a natural, upright riding posture to reduce strain on shoulders, arms, and back, keeping you comfortable on every commute and adventure.

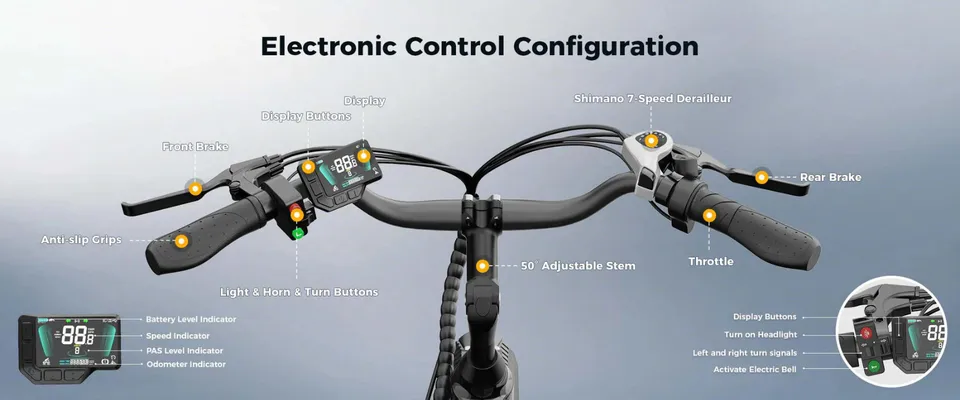

【Multi-Function Smart Controller】
Vibrant full-color display shows voltage, speed, and mileage at a glance. Activate cruise control with a long press of the “-” button to maintain steady speed; use walk-assist mode for easy pushing when needed. All functions are designed for a hassle-free riding experience.

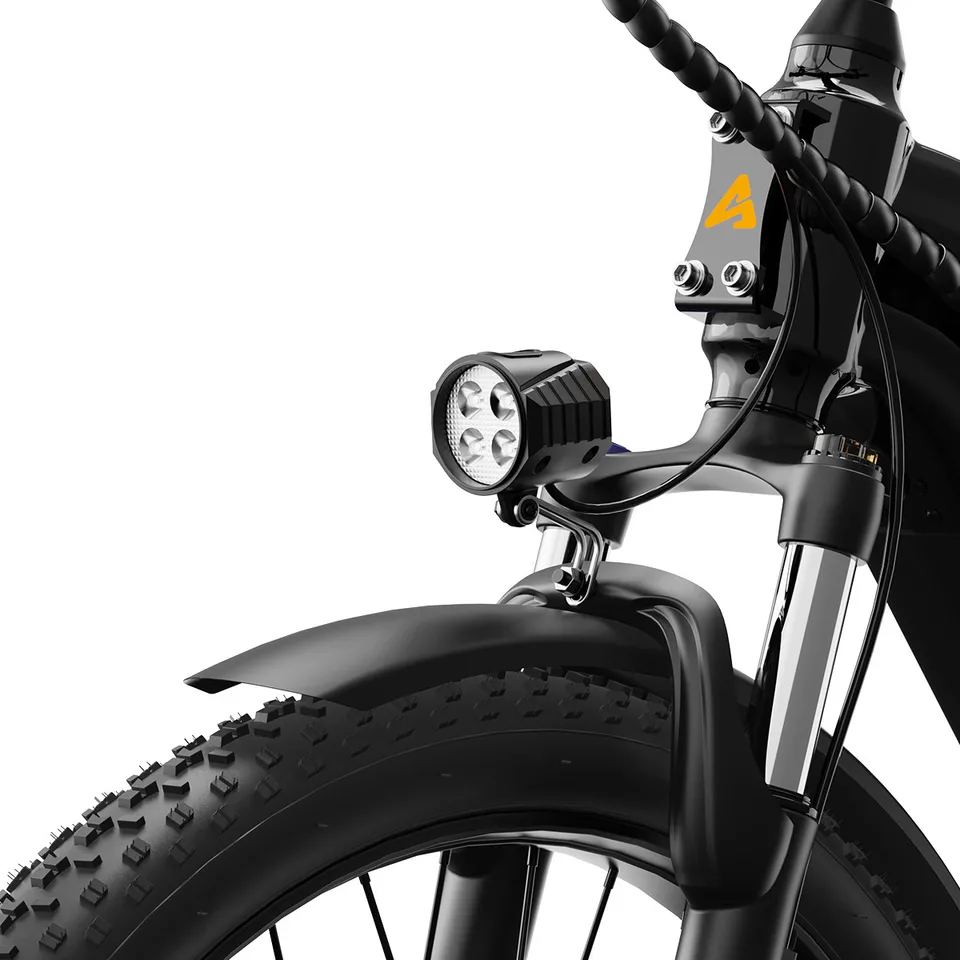

【Full LED Lighting System for Safety】
4-LED front headlight illuminates the road ahead. Rear light integrates turn signals, constant-on mode, and automatic brake-flash alerts, keeping you visible and safe during night rides and low-light conditions.
【100mm Adjustable Fork Suspension】
Spring + hydraulic oil adjustable front fork with up to 100mm travel absorbs shocks and smooths rough terrain. Fine-tune suspension stiffness via the lockout knob to tackle various road conditions with stable, controlled riding.
【7-Speed Shimano Gearbox】
7-speed adjustable Shimano drivetrain lets you enjoy both traditional pedaling fun and powerful electric-assisted riding. Seamlessly switch between gears for casual cruising, steep climbs, or fast-paced commutes.
【Humanized Design & Reliable Warranty】
Comes with 95% pre-assembled construction for quick setup right out of the box. Backed by a 1-year quality warranty and lifetime technical support. Genuine Aipas accessories are available to further enhance your biking experience.
Vehicle Specifications
Specification Name
Specification Value
Pedal Assist Range
85 Miles
Electric-Only Range
36 Mile
Top Speed
28 Mph
Dimensions
69*27*42(Inch)
Max Load Capacity
500Lbs
Ebike Net Weight
65 Lbs
Battery Weight
9 Lbs
Torque
90 Nm
Tire Size
24*2.6, 30psi
Battery
48V*18AH IP65 Waterproof SGS Certified UL2271
Electric Motor Control
Specification Name
Specification Value
Display
LCD Display
Pas Levels
0-5 PAS
Throttle
Half-Twist Throttle / Optional Thumb Throttle.
Maximum Output
Output:48V23A With Temperature Control Protection
Motor
1100W Rear Hub Brushless Motor.
Freewheel
Shimano 7-Speed Indexing
Rear Derailleur
Shimano 14-28T
Shifter
Shimano 7-Speed
Charger
2A Smart Charger
Frame Assembly
Specification Name
Specification Value
Front Suspension
Aluminum Adjustable Shock Absorbers
Front Suspension
Travel Total Length 510mm, Travel 100mm.
Handlebar
Riser Handlebar, Grip Length 104mm, Total Length 660mm
Pedals
Folding, 9/16", With Reflectors
Chain
1/2"*3/32"*118l, 21-Speed Indexing
Crankset
170mm Crank Arms, 48t Chainring
Note: Our products have been certified under UL2849 safety standards
