6S 7S 8S 9S 3.7V 15A Common port
Size:60.5MM*32.5MM*9MM
Continuous discharge current limiting:15A
Continuous current limiting during charging:8A
Discharge protection current limiting:40A
Charging protection current limiting:10A
Limited charge voltage:25.2V/29.4V/33.6V/37.8V
Overcharge voltage :4.25V±0.025V
Overcharge release voltage：4.15V±0.05V
Over-discharge voltage：2.7V±0.05V
Overdischarge release voltage：3.0V±0.1V

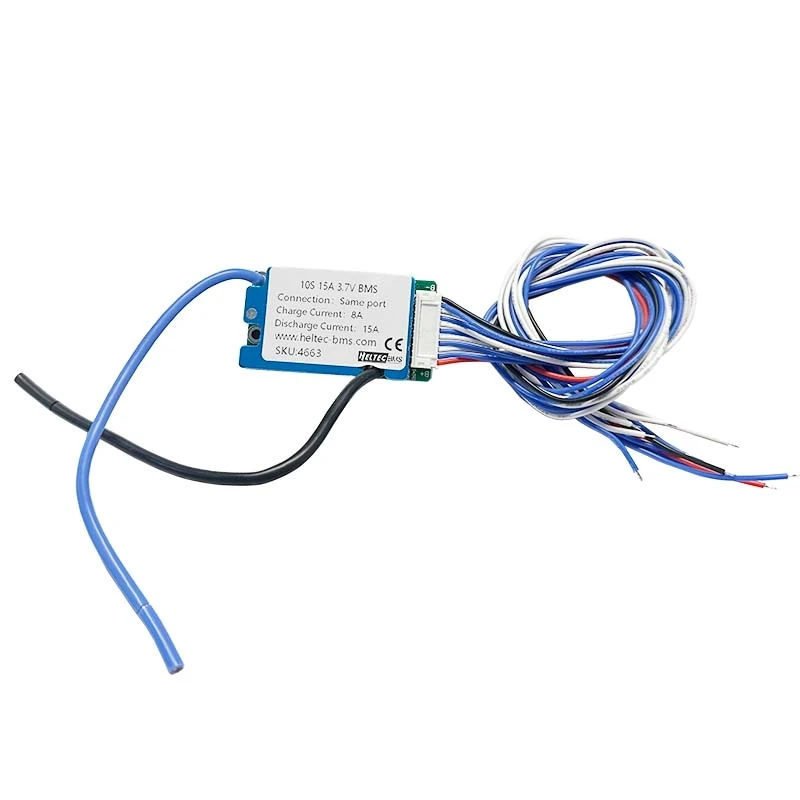

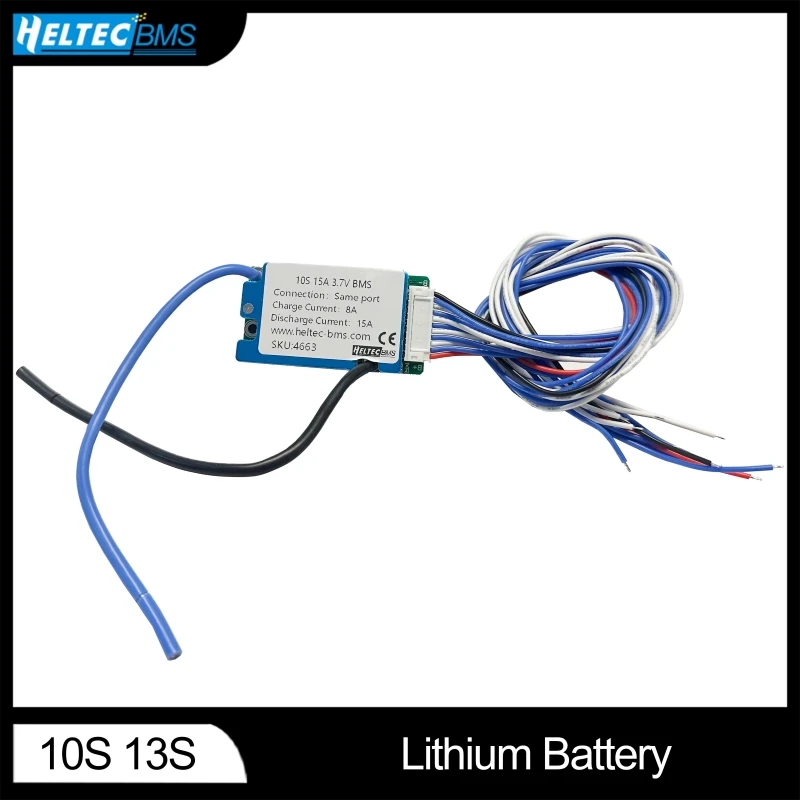

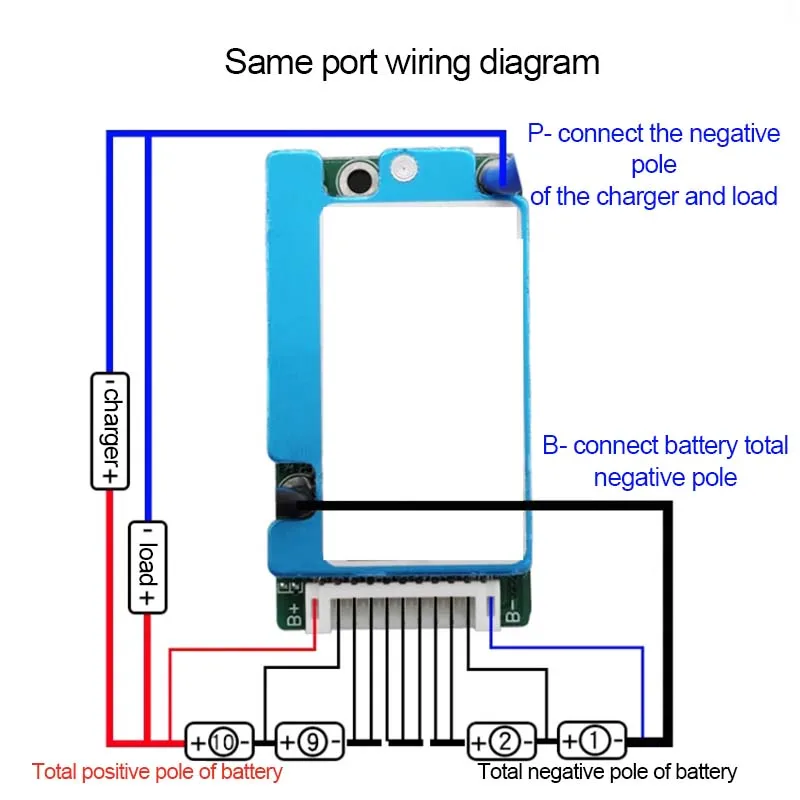

10S 3.7V 15A Common port
Size:60.5MM*32.5MM*9MM
Continuous discharge current limiting:15A
Continuous current limiting during charging:8A
Discharge protection current limiting:40A
Charging protection current limiting:10A
Limited charge voltage:42V
Overcharge voltage :4.25V±0.025V
Overcharge release voltage：4.15V±0.05V
Over-discharge voltage：2.7V±0.05V
Overdischarge release voltage：3.0V±0.1V
Over Temperature Protection：-10℃~+70℃（Only TC option)

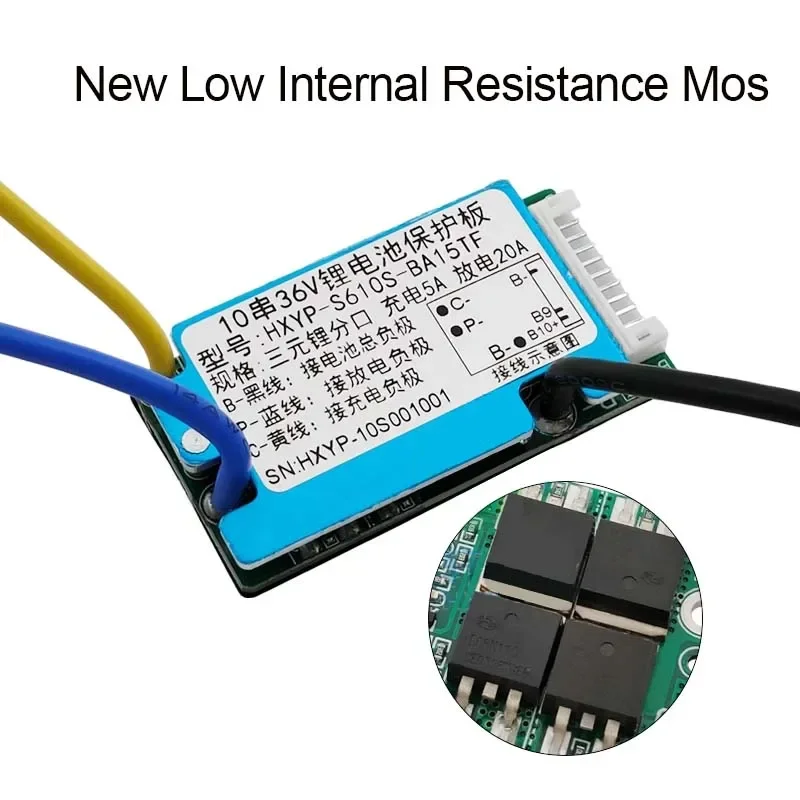

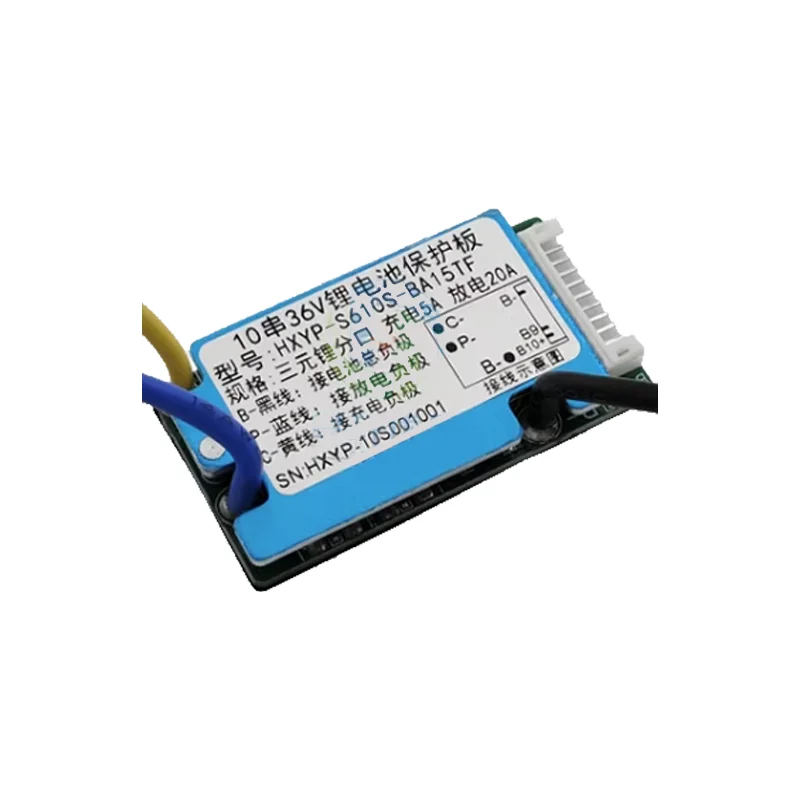

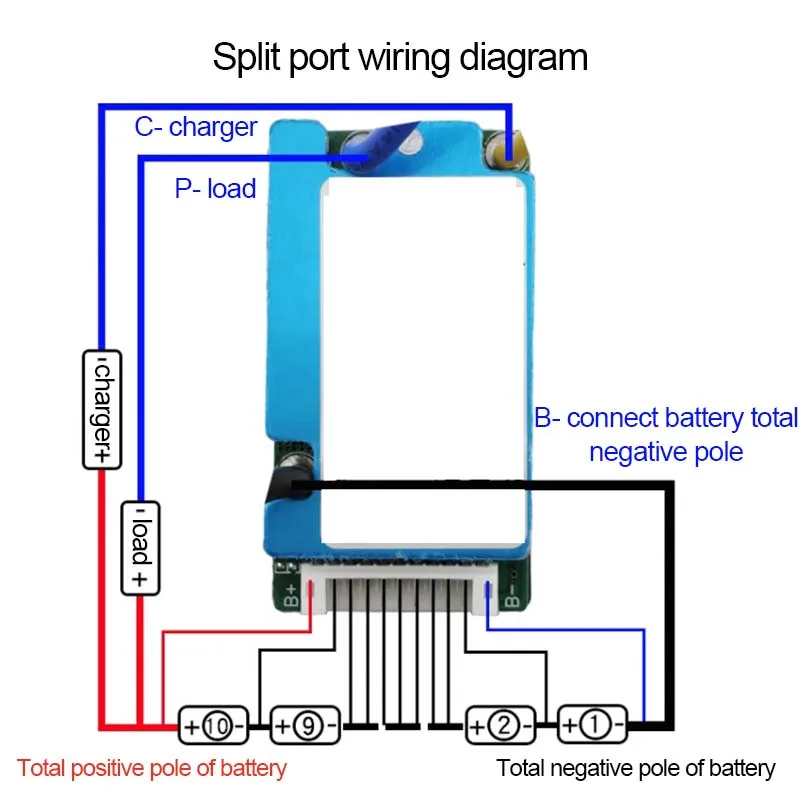

10S 3.7V 20A Split port
Size:60.5MM*32.5MM*9MM
Continuous discharge current limiting:20A
Continuous current limiting during charging:5A
Discharge protection current limiting:40A
Charging protection current limiting:10A
Limited charge voltage:42V
Overcharge voltage :4.25V±0.025V
Overcharge release voltage：4.15V±0.05V
Over-discharge voltage：2.7V±0.05V
Overdischarge release voltage：3.0V±0.1V
Over Temperature Protection：-10℃~+70℃（Only TC option)
Attention:
Ⅰ.Strictly follow the wiring diagram for 0V (B -), 3.7V (B1), 7.4V (B2), and 11.1V (B+), and do not intentionally short-circuit.
II. After connecting the cable, it needs to be charged first before there is an output.
III. When connecting three sets of batteries in series, please ensure that the voltage of each set of batteries is the same. If different, please fully charge each set of batteries separately before using them in series. The group of batteries with the fastest voltage drop during discharge testing is the poor battery.
