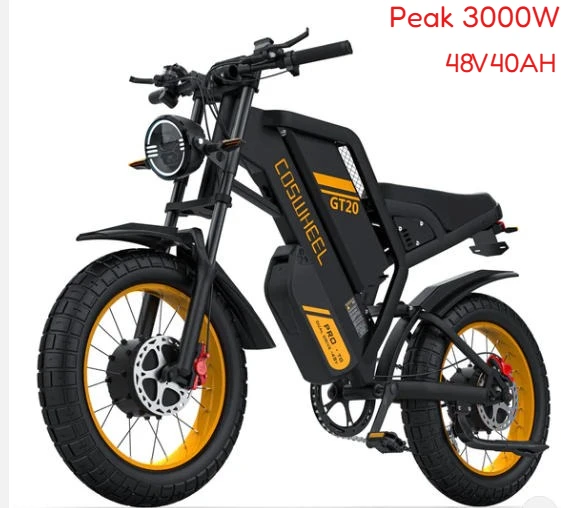

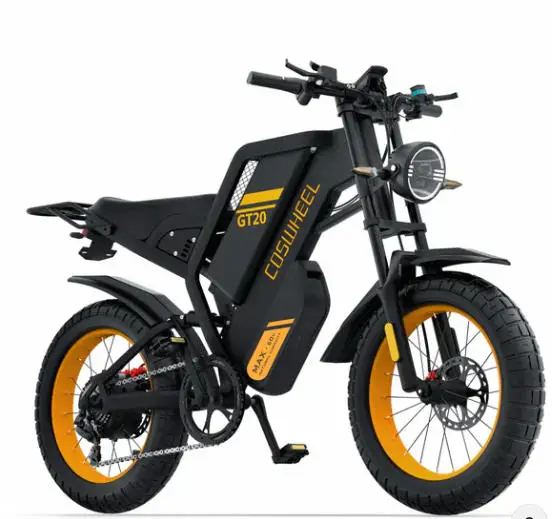

GT20 PRO Specifications
Top Speed: Class 2/3, 31 Mph (50Km/h)
Range: 80+miles (128km) in Class-2 throttle-only mode (pure electricity); 145miles (233km) in Class-1 PAS (pedal assist)

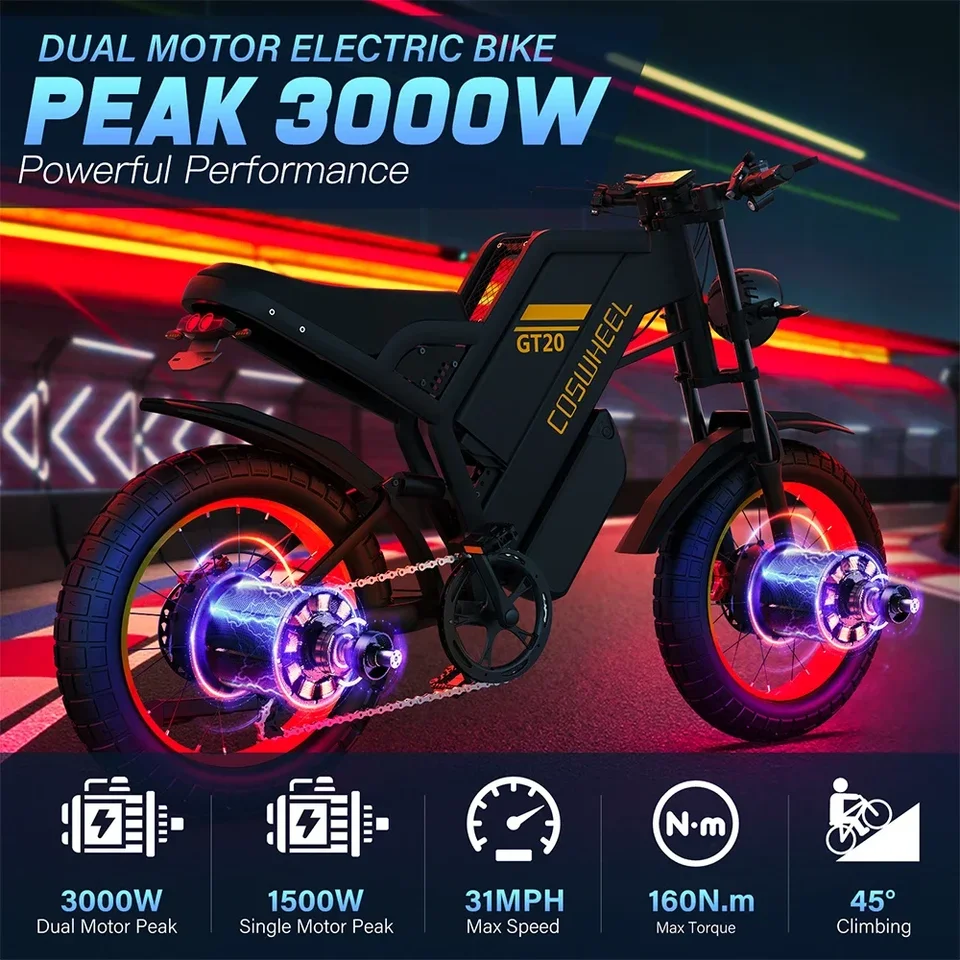

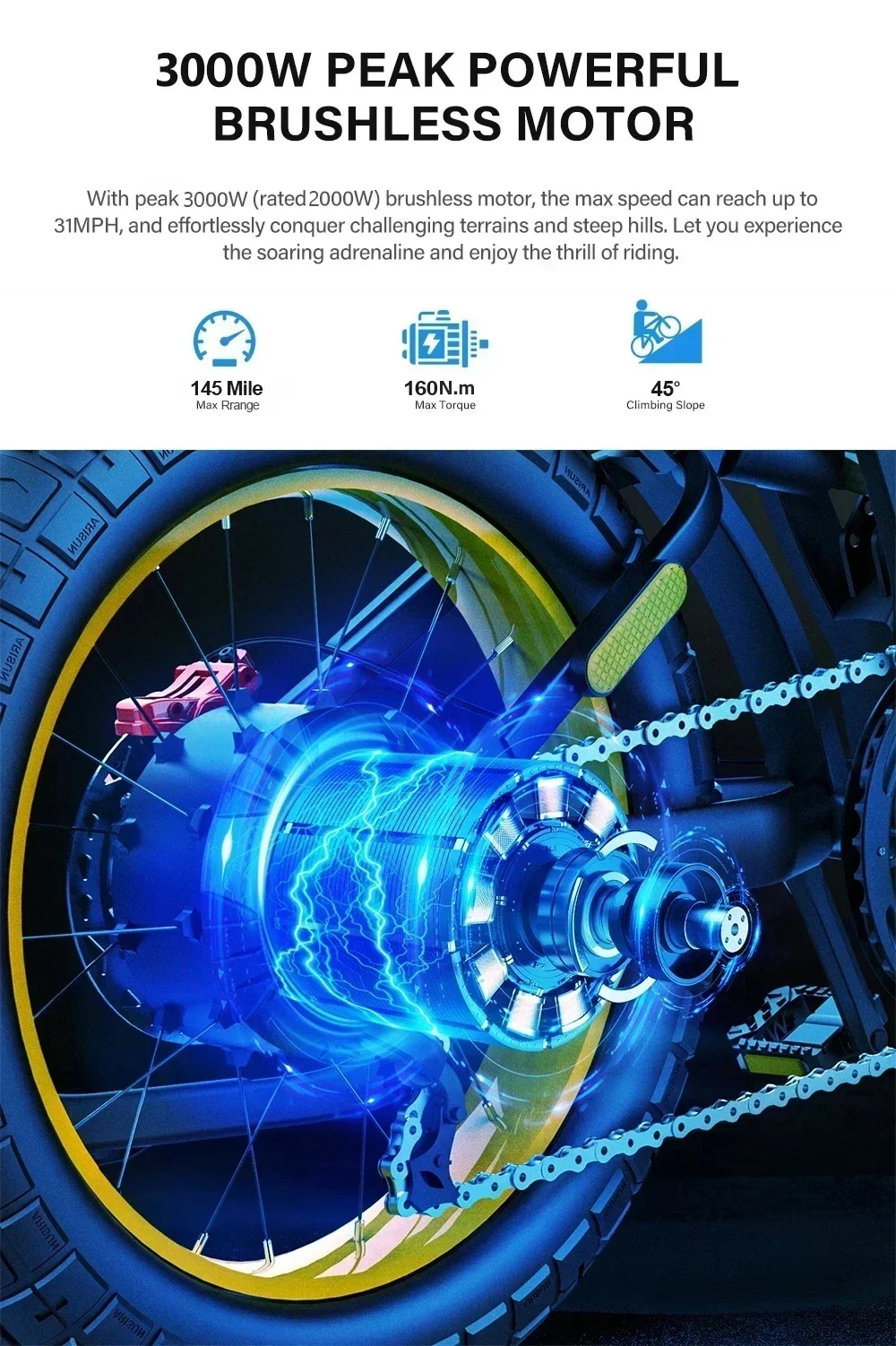

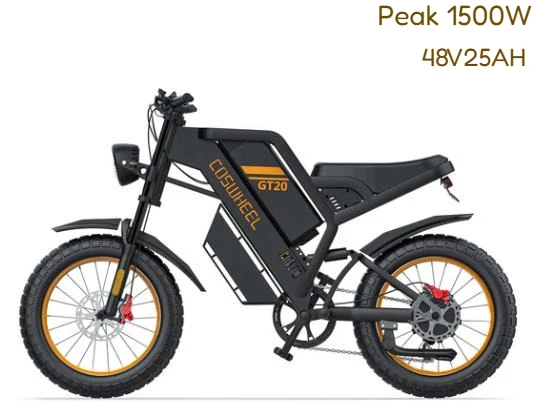

Motor: 48V Peak 3000W( Peak 1500W+1500W) (Rated 1000W+1000W) Brushless Rear Hub Motor 160N.m

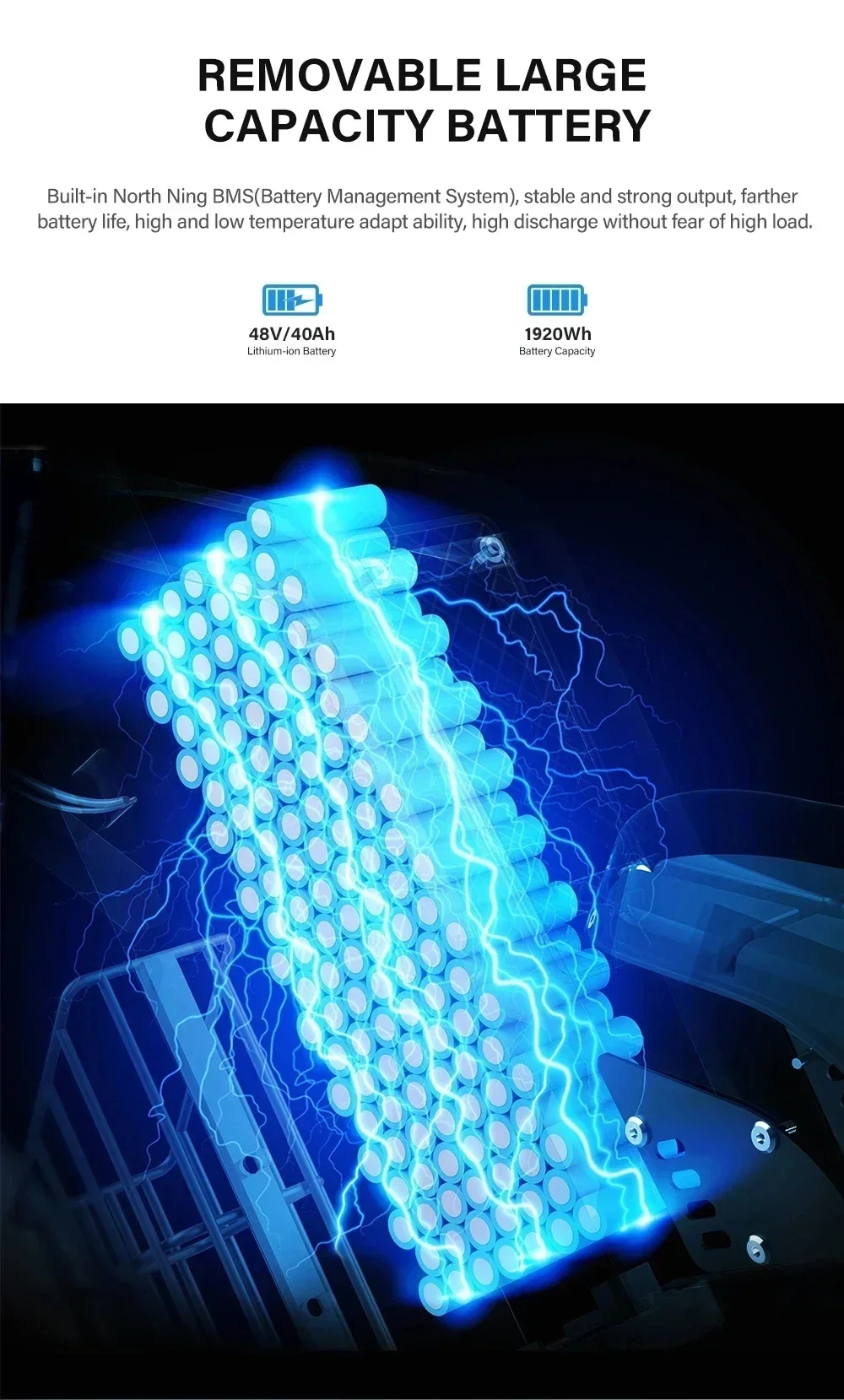

Battery: 48V 25Ah+15Ah Battery (Lithium 18650 Cells)
Energy: 1920Wh

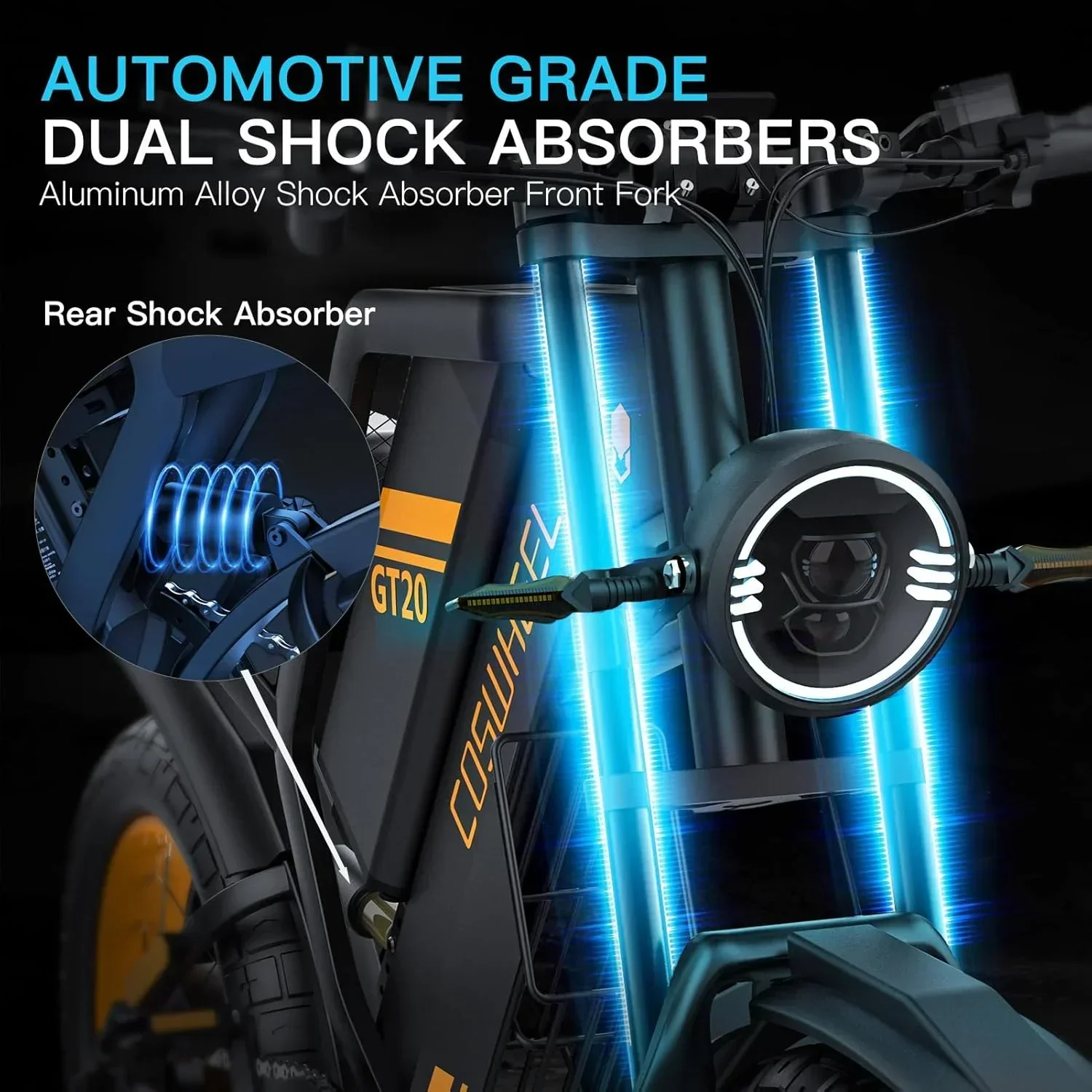

Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
Rear Suspension: 850 Pounds, 180mm Travel

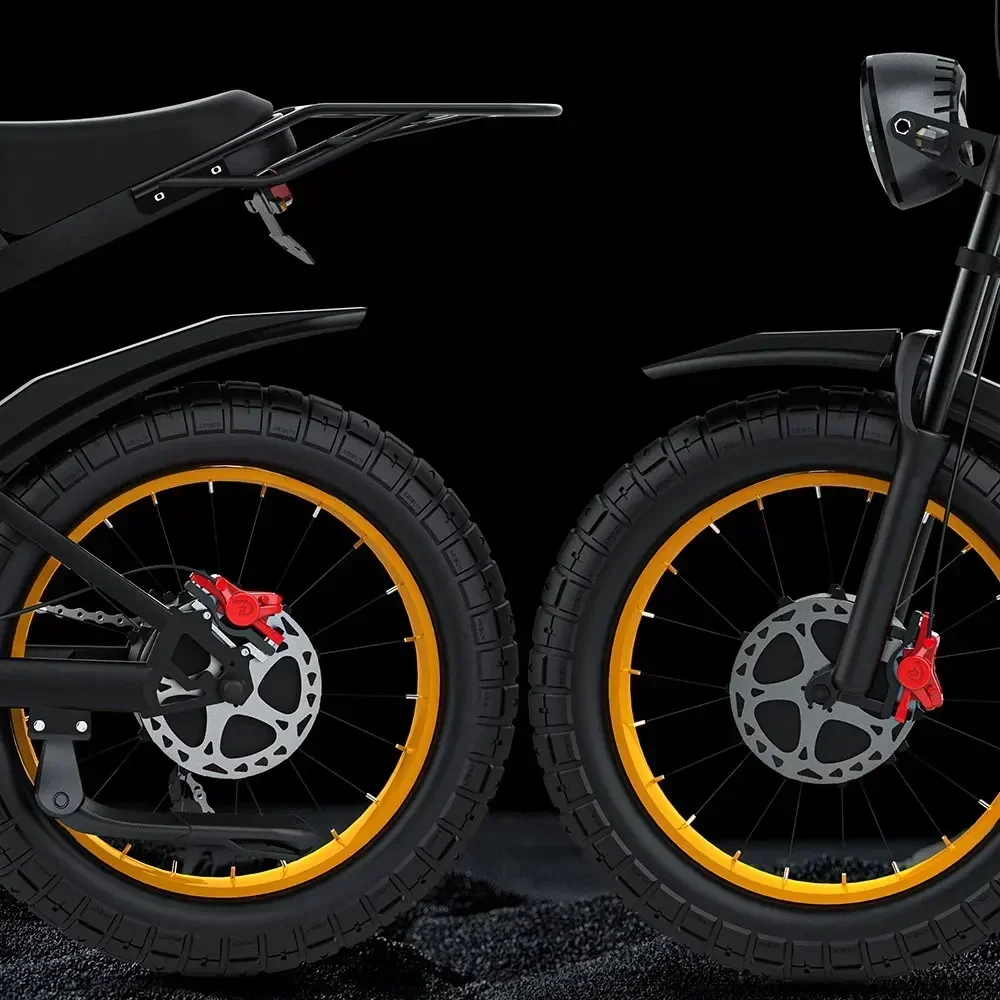

Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc

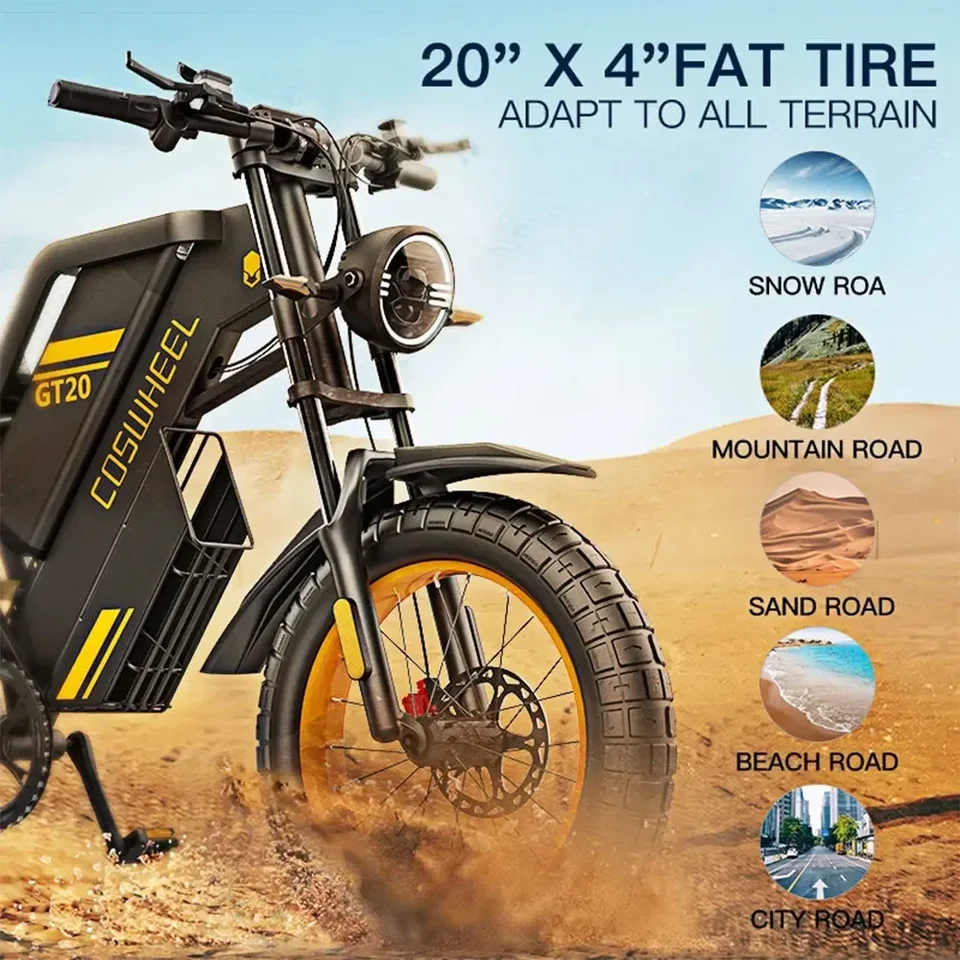

Tires: ARISUN Off Road Tire 20" × 4.0" A820 60TPI with Meimeng Tire+PVC Line
Throttle: Thumb Throttle
Charger: 48V3A Charger
Charging Time: 3.5-8.0 Hours
Display: Easy Read LCD Display
Controller: 48V 28A

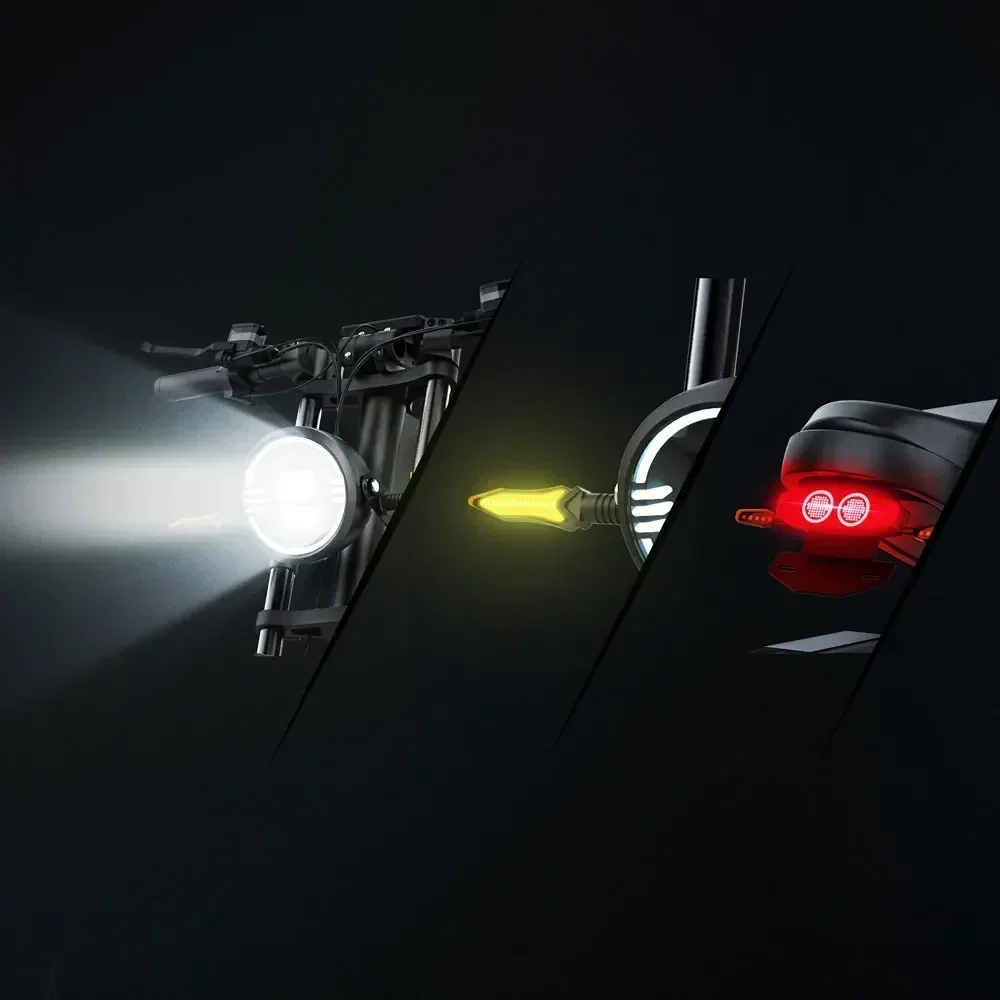

Front Light: Classic Angel Eye Headlight, 120 LUX
Rear Light: LED
Pedal Assist: 5 Levels
Sensors: Speed Sensor
Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2

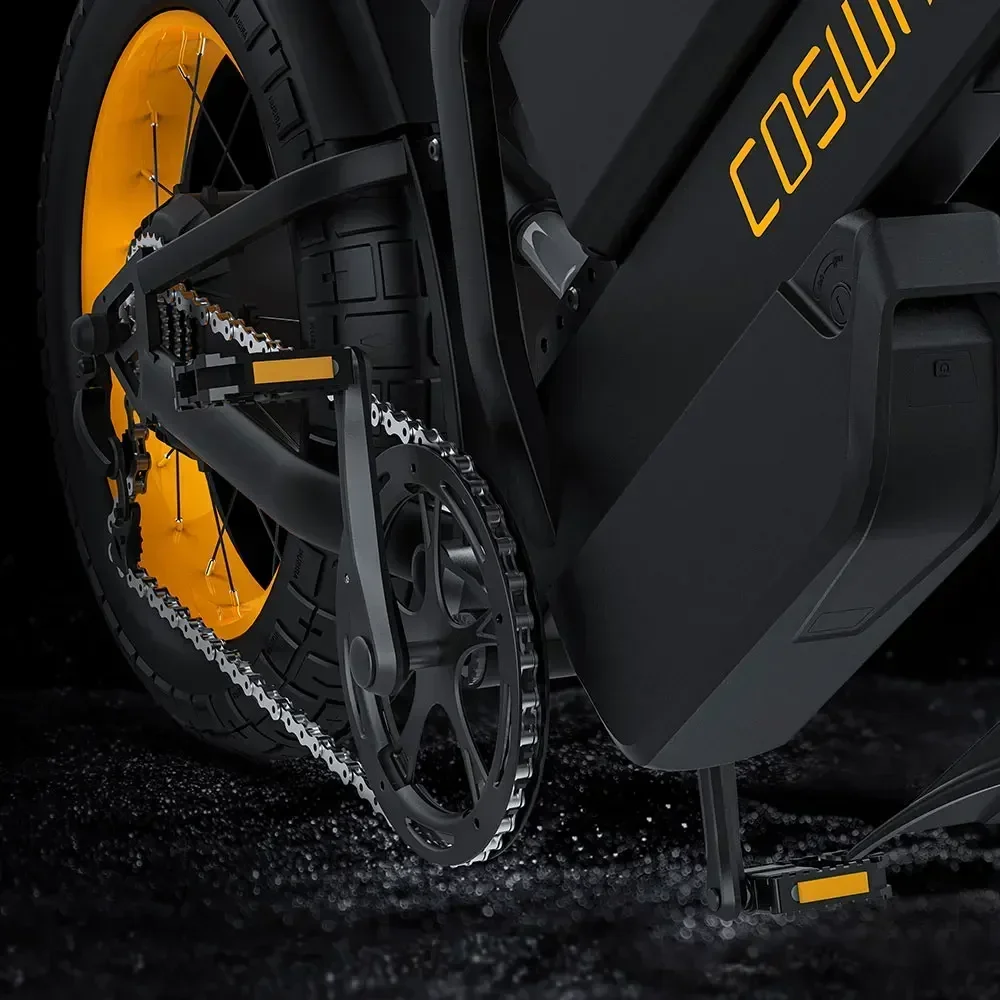

Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
Rear Derailleur: Shimano 7-Speed
Chain: 7-speed Anti-rust, 1/2" * 3/32"
Handlebars: Split Handlebar, φ32 φ22 Sand Black
Suitable Height: 5'1" - 6'5"
Seat Height: 32.6" (83cm)
Bike Height: 41.7" (106cm)
Wheelbase: 47.8" (121.5cm)
Handlebar Width: 27.2" (69cm)
Bike Weight: ≥99lbs (with Battery) (≥45kg)
Maximum Load: 330lbs (150kg)
Safe Load: 265lbs (120kg)
Overall Size: 70.9" * 27.2" *41.7" (180*69*106cm)
Package Size: 59.4" * 13.8" * 36.2" (151*35*92cm)
