electric bike A6AH20F
With 20''*4.0 fat tires and a front suspension fork this electric bike is ready to both cruise the pavements and conquer the trails!
The powerful motor and stealthily integrated battery mean that you'll never be short of power, and 5 levels of pedal assist and a no-nonsense, no-need-to-pedal throttle mean that you can go as hard or as light as you want. Cruise around town or through the park on this and you're sure be turning heads!
Rear Hub Motor
36V 250W/350W 48V 500W/750W/1000W motor optional
You never thought you'd find such a powerful motor in a fat tire electric bike! The stealthy, the powerful motor means that you can
conquer almost anything!

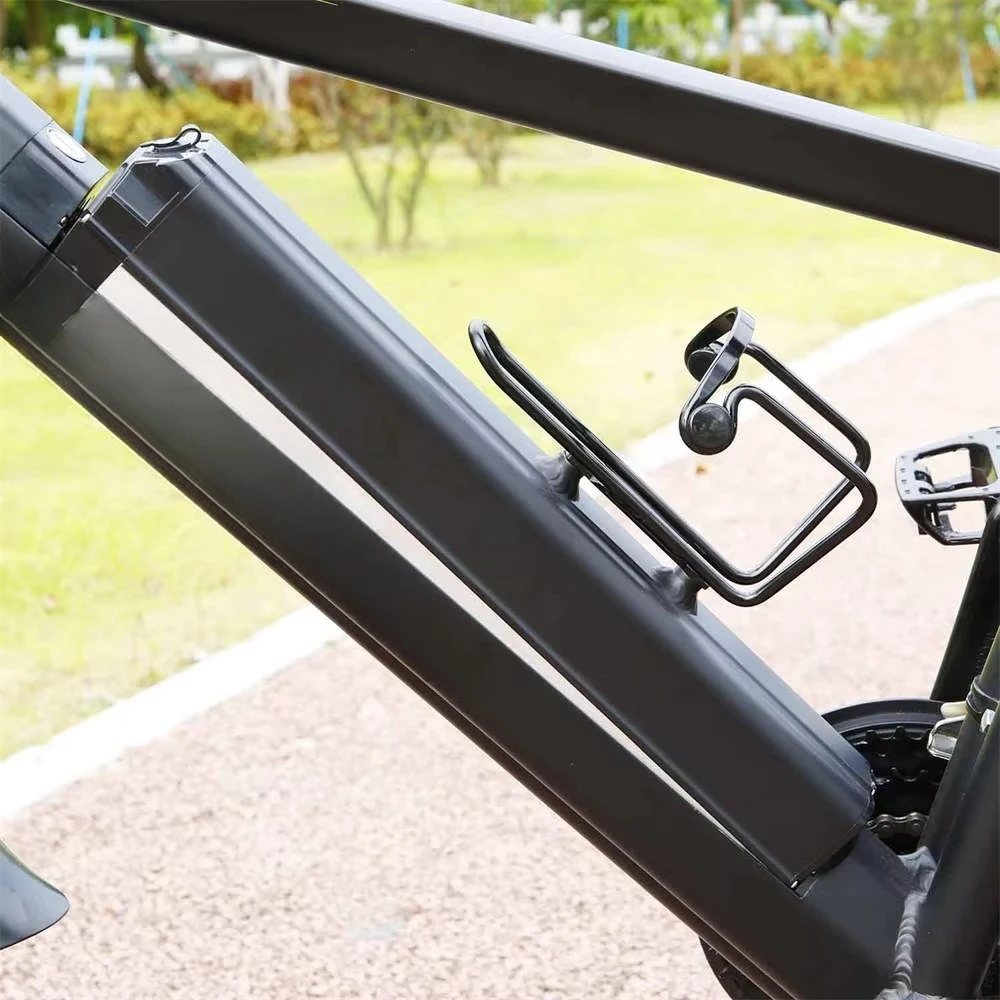

Lithium Battery in the Frame
This electric bikes features a high quality waterproof Lithium battery designed to fit in the frame.This design keeps the electric bike looking stylish, battery capacity 36V 10AH/13AH 48V 10AH/13AH/20AH optional and besides the battery can be taken out with ease and very convenient to charge
20*4.0 inch fat tire
20" x 4.0 fat tires take you anywhere and provide excellent stability whether you be on the pavement or the trail. Trust in the
tires beneath your fat electric bike as you go wherever your heart takes you with confidence.
Aluminum alloy Front Suspension frok
Built to conquer the trail as well as the streets, the lockable front suspension tempers any surface you may find beneath your
wheels.

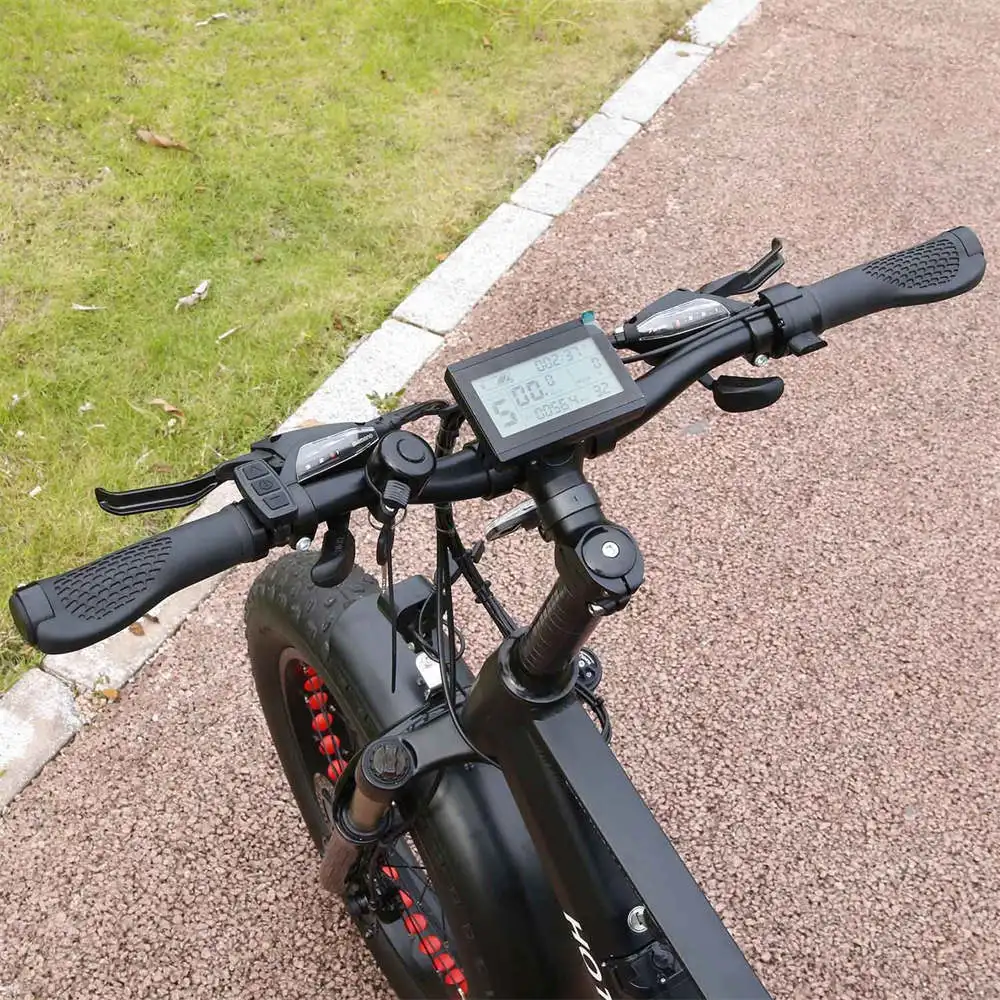

Multifunction LCD Display
Keep track of your speed, pedal assist level, how far you've gone, and how far you've got left to go with this perfectly placed LCD screen. Located on the handlebars of your fat tire electric bike this easily viewable, backlit LCD means you can go anywhere with high levels of confidence.
conjoined brake levers & gear shifter
High quality conjoined brake levers & gear shifter,easy to shift speed,cut-out electric when braking

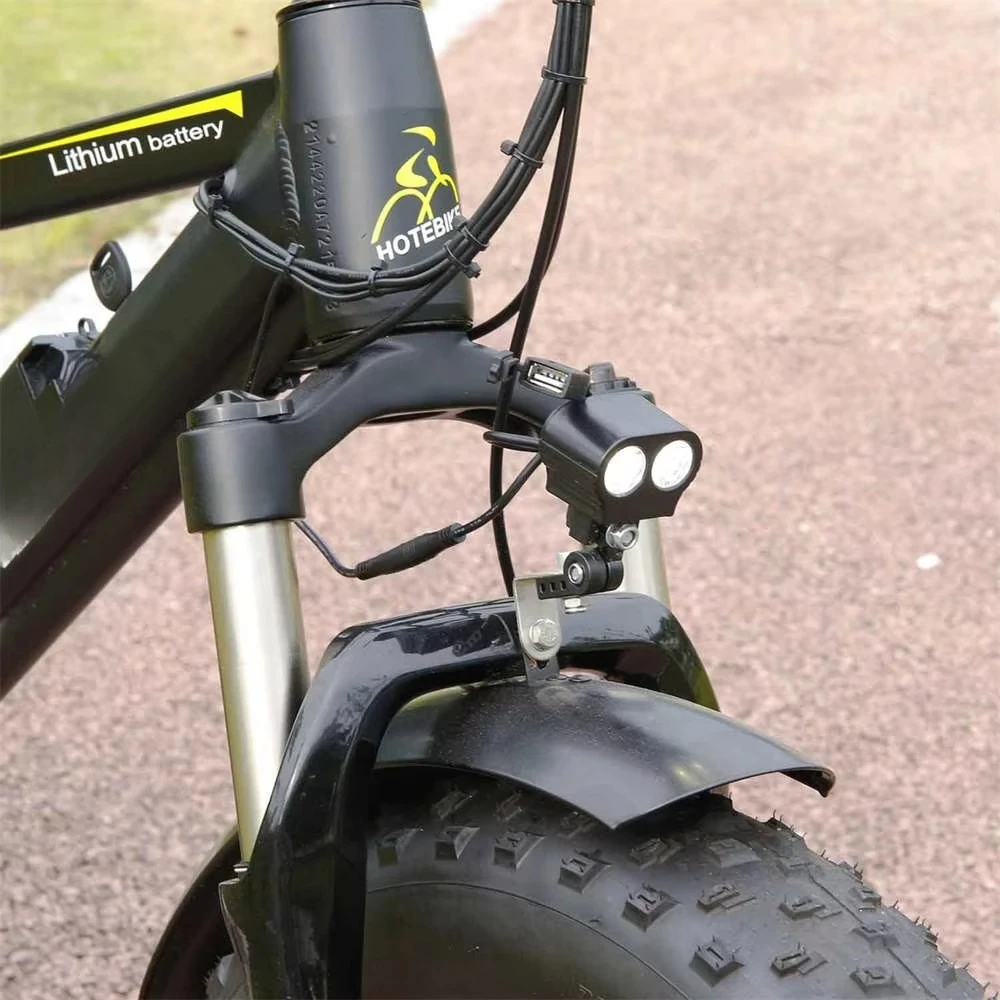

3W LED front light with USB charging port
3W LED front light, provides bright riding vision and ensures safety at night. besides, 5V 1A USB port can charge the phone.

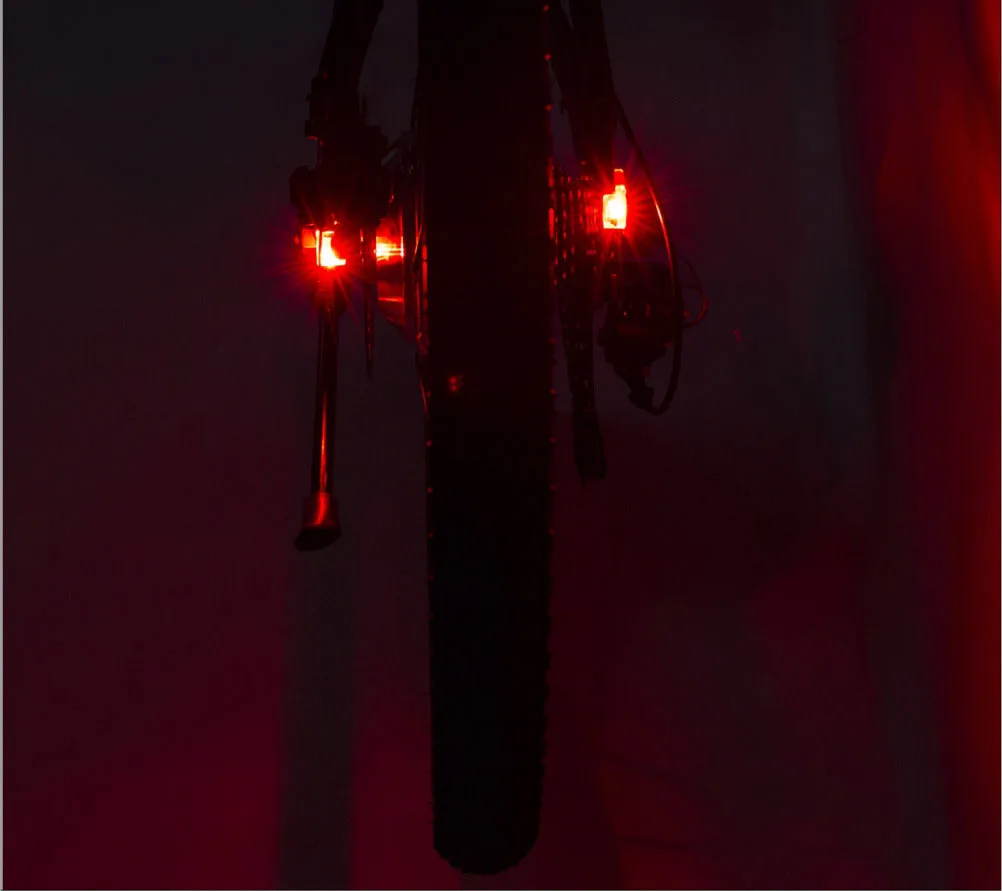

New rear light,riding light, flashing brakes
night warning-long light, brake warning-light flashes when braking.
Specification
Specification
Standard
Optional（MOQ≥100）
Colour
White/Black
OEM
Motor
36V 250W/350W 48V 500W/750W gearless brushless hub-motor
●48V 1000W hub-motor
●dual motor
Max speed
25-40 km/h
35-45 km/h
Battery
36V 10AH/13AH 48V 10AH/13AH lithium battery with key
●48V 20AH lithium battery
Range
1:1 PAS mode, 40-80KM
60-100KM
Warranty
12 months(Motor & Battery)
Initiating mode
PAS and throttle
Charger
42V/54.6V 2A 100-240V input
Charging time
5-7 hours
Controller
Intelligent brushless
Loading
150kg
Frame
6061 Aluminum alloy
Wheel rim
Aluminum alloy double wall
Front fork
Suspension aluminum alloy
Front brake
160 disc brake
Hydraulic disc brake
Rear brake
160 disc brake
Hydraulic disc brake
Tyre
20''*4.0
26''*4.0 tire
Gear
21 Speed with derailleur
7/9/27 Speed with derailleur
PAS
Five adjustable speed, 1:1 pedal assistant
Brake lever
Conjointed shifter with power cut -off brake
Display
Shuangye LCD3 with electric brake,USB LED light
Saddle
Soft and comfortable saddle
Other saddle
Luggage carrier
Steel
Mudguard
Plastic
Seat tube
Aluminum alloy
Suspension aluminum alloy
Front light
3W LED headlight with USB charging port
Rear light
Riding light, flashing brakes
Sticker &color
Hotebike
OEM
Weight
N.W:25kgs G.W:31kgs
Carton size
131*31*61cm
