Product Features:

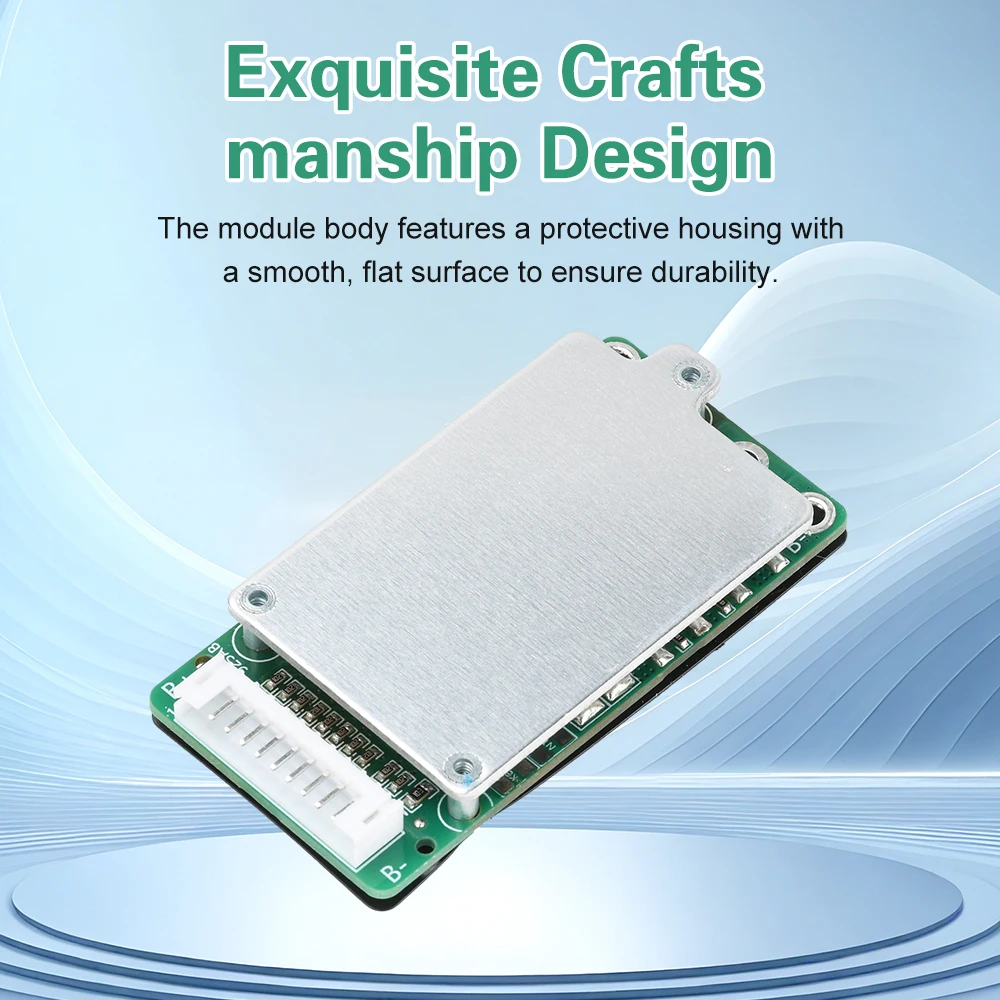

1. Exquisite Craftsmanship: The module features a blue protective casing with a smooth surface to ensure durability.

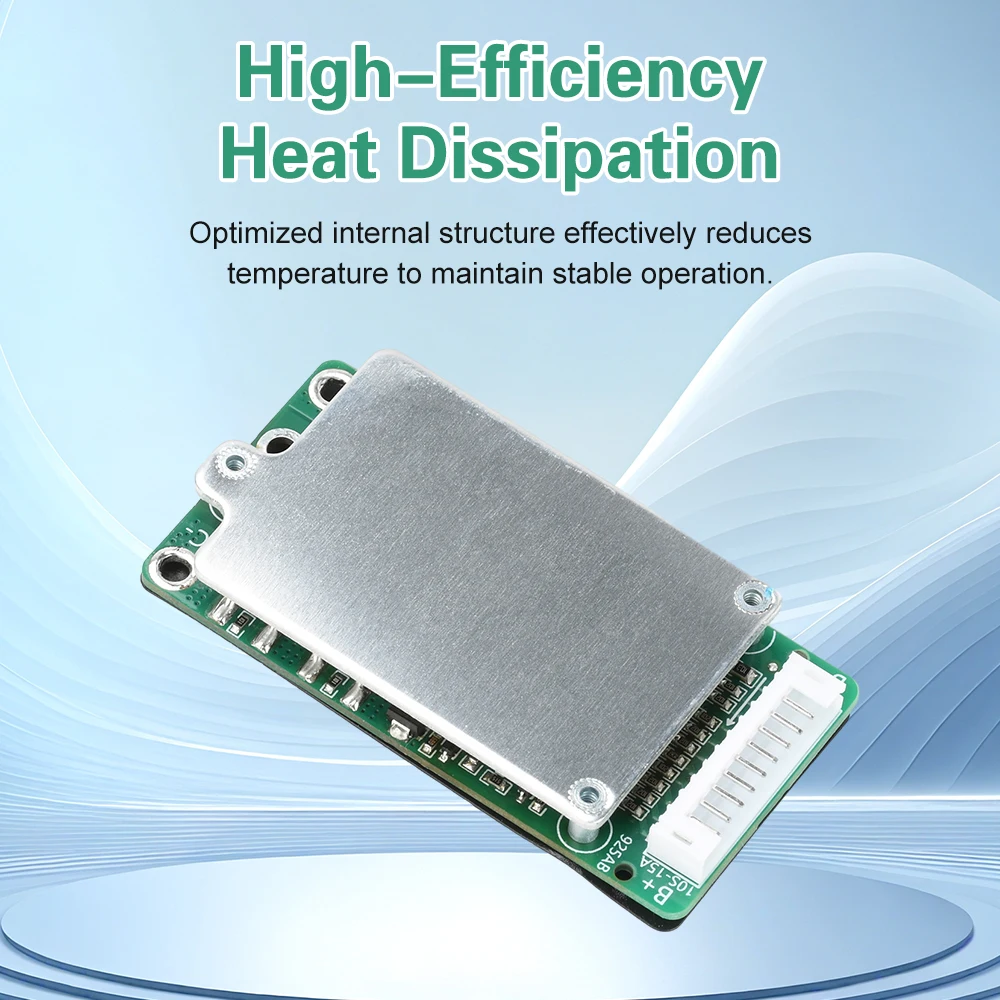

2. Efficient Heat Dissipation: Optimized internal structure effectively reduces temperatures and maintains stable operation.

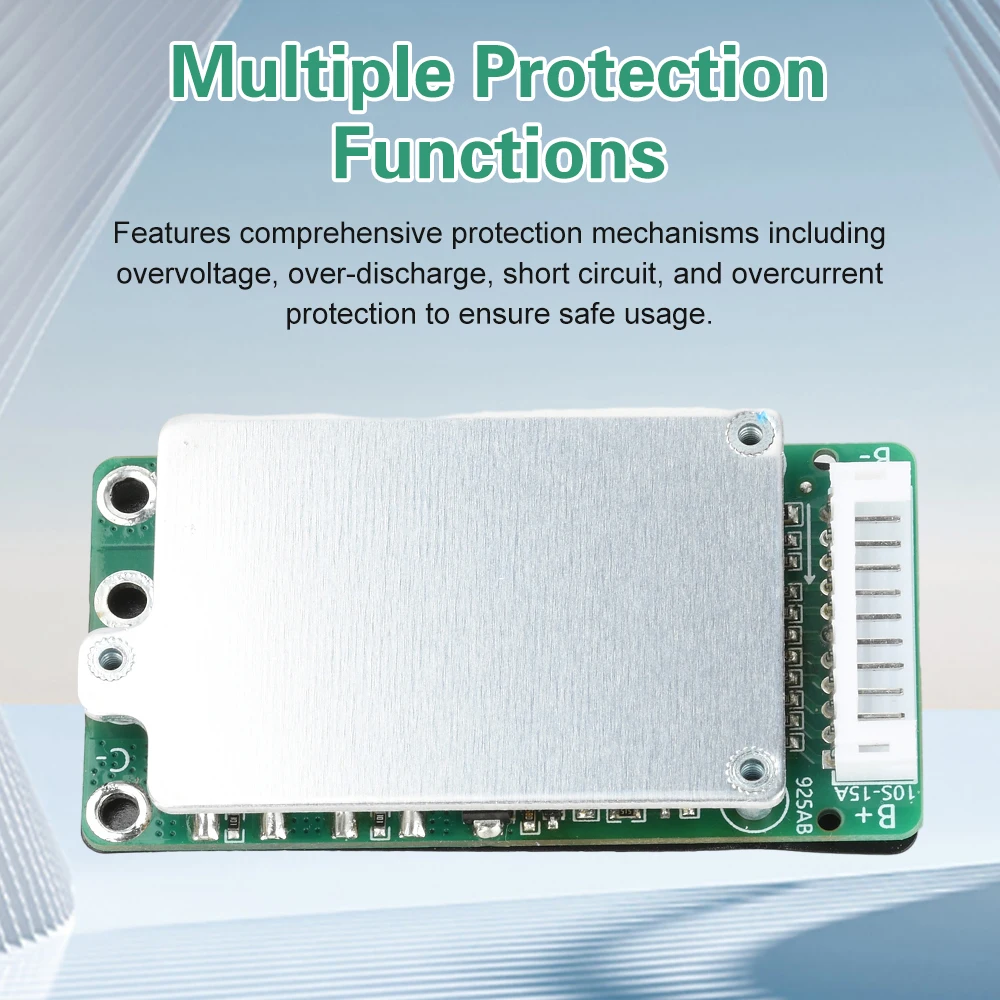

3. Multiple Protections: Comprehensive protection mechanisms include overvoltage, over-discharge, short-circuit, and overcurrent to ensure safe operation.

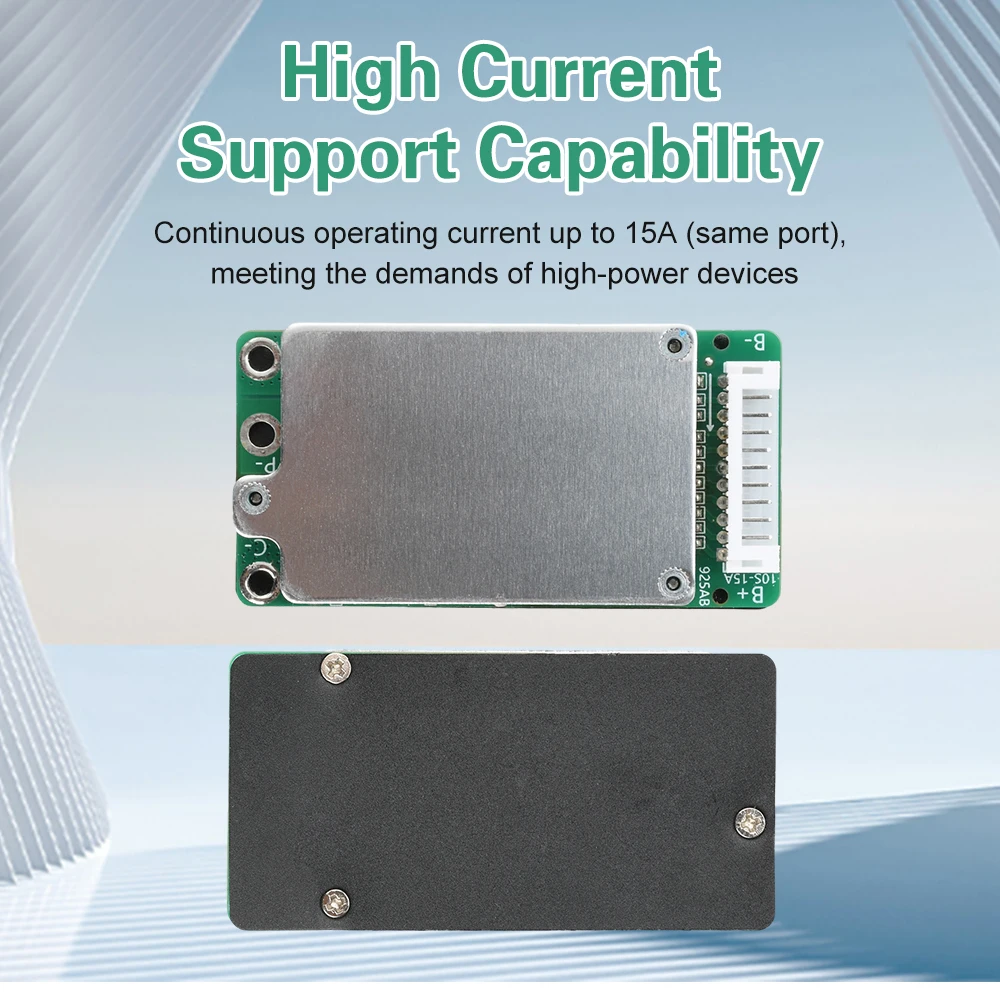

4. High Current Capacity: Continuous operating current reaches up to 15A (single port), meeting the needs of high-power devices.

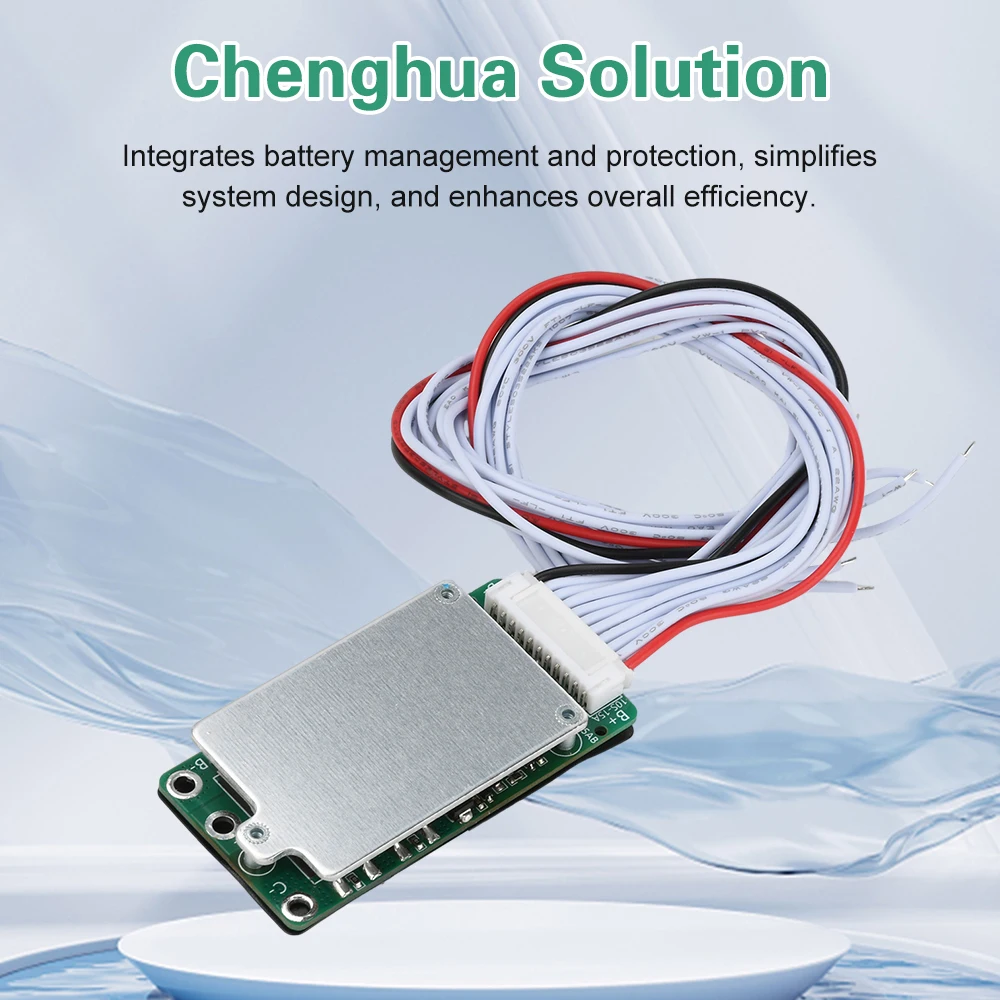

5. Chenghua Solution: Integrated battery management and protection, simplifying system design and improving overall efficiency.

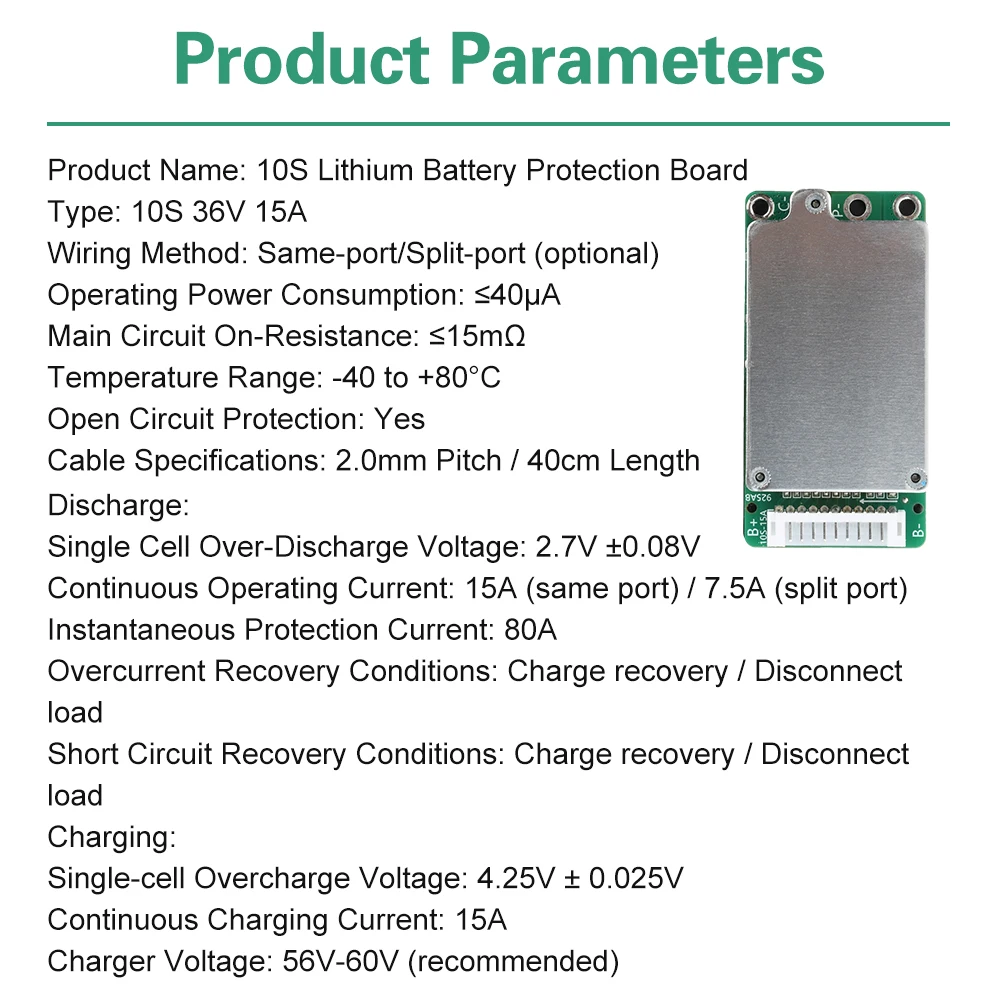

Product Parameters:

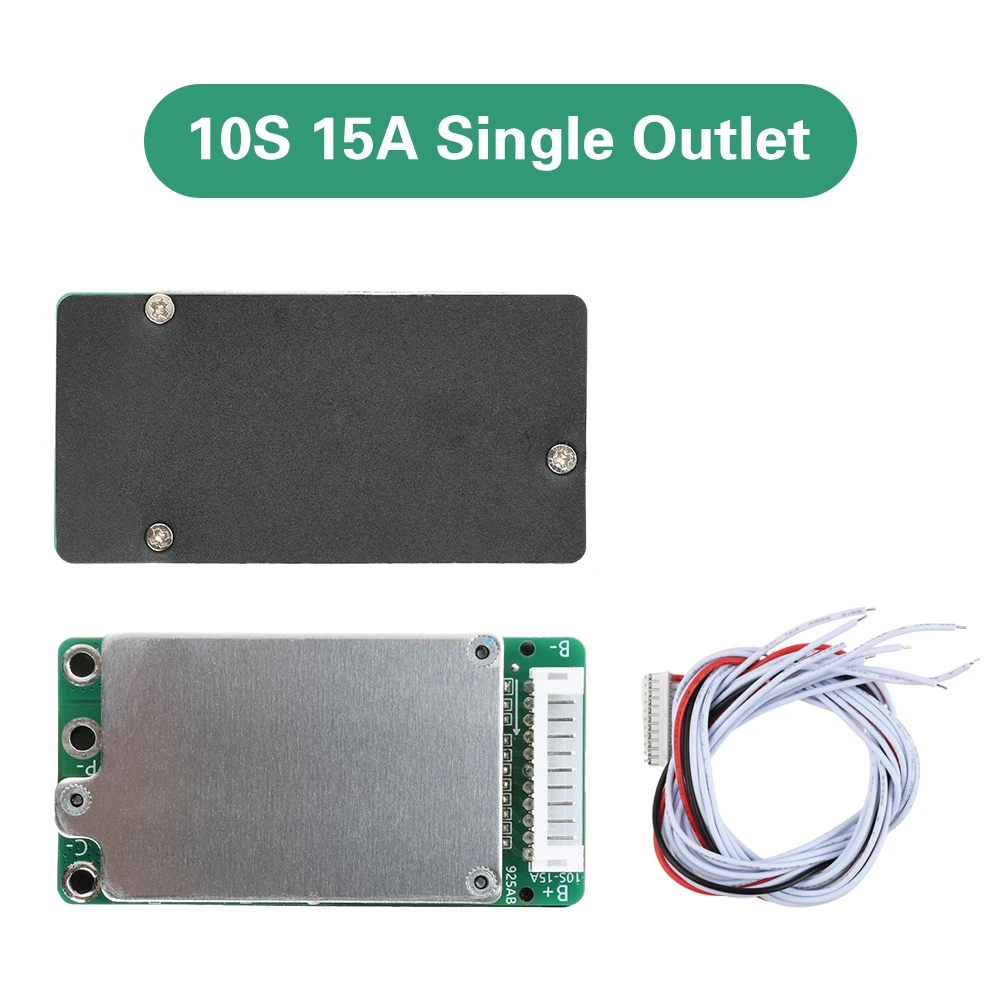

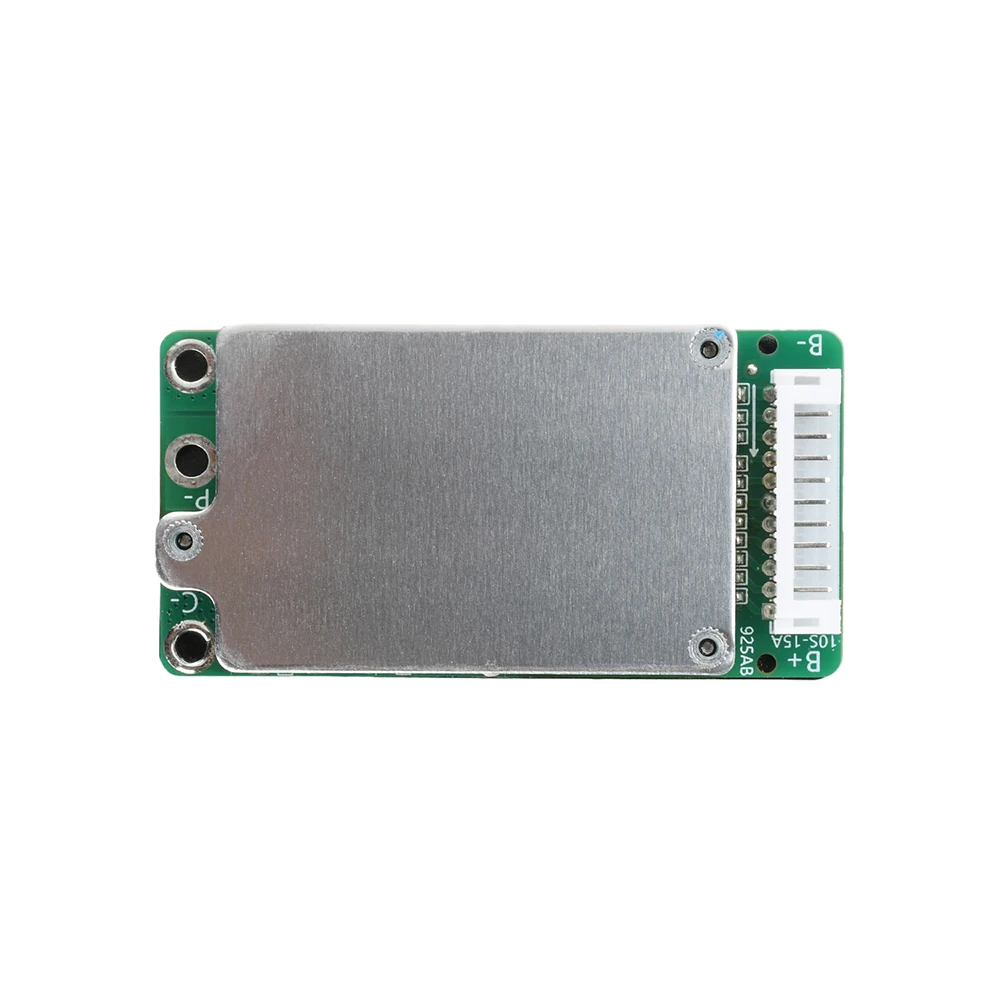

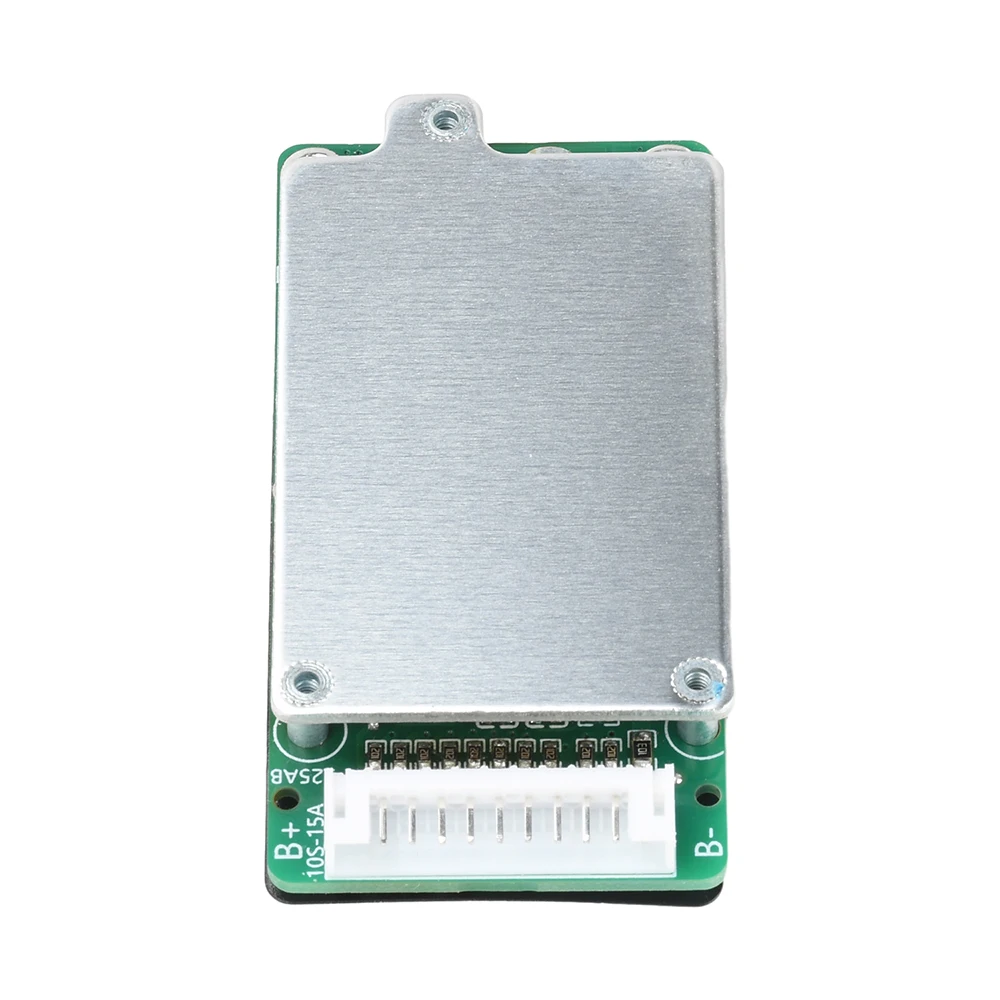

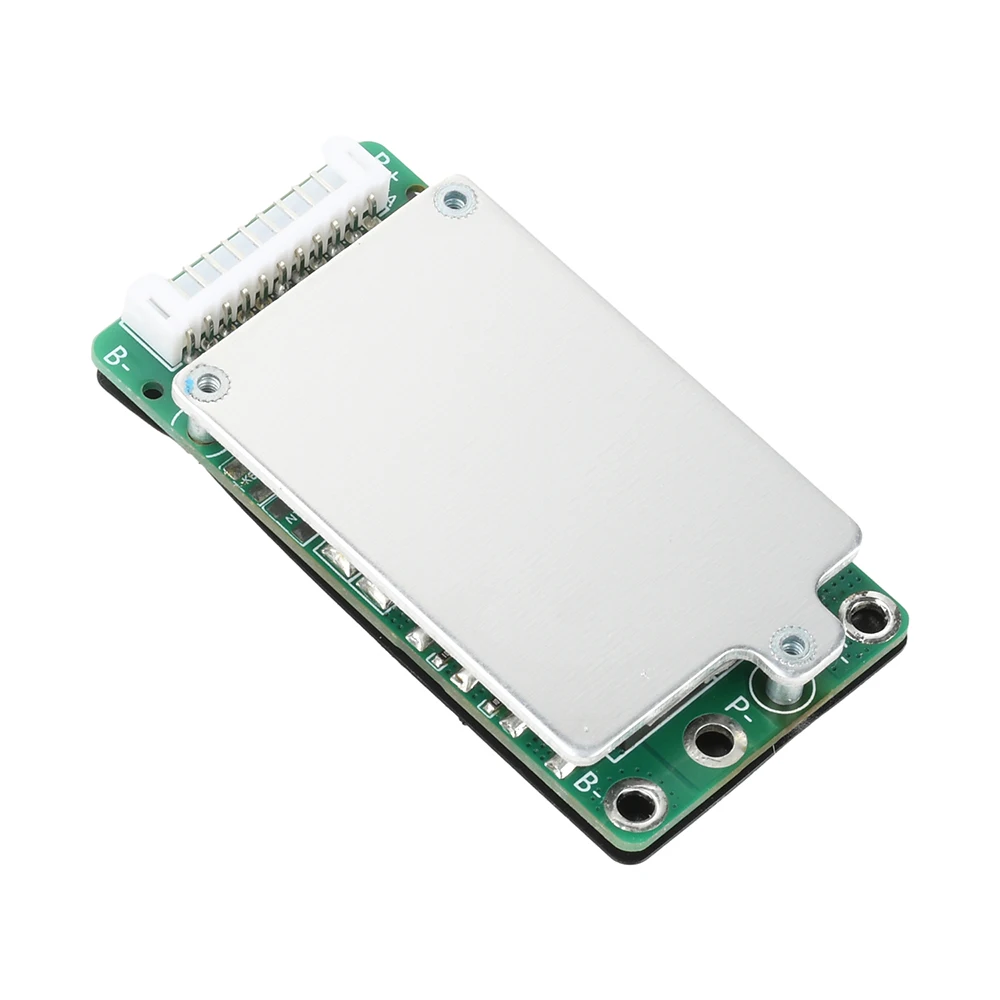

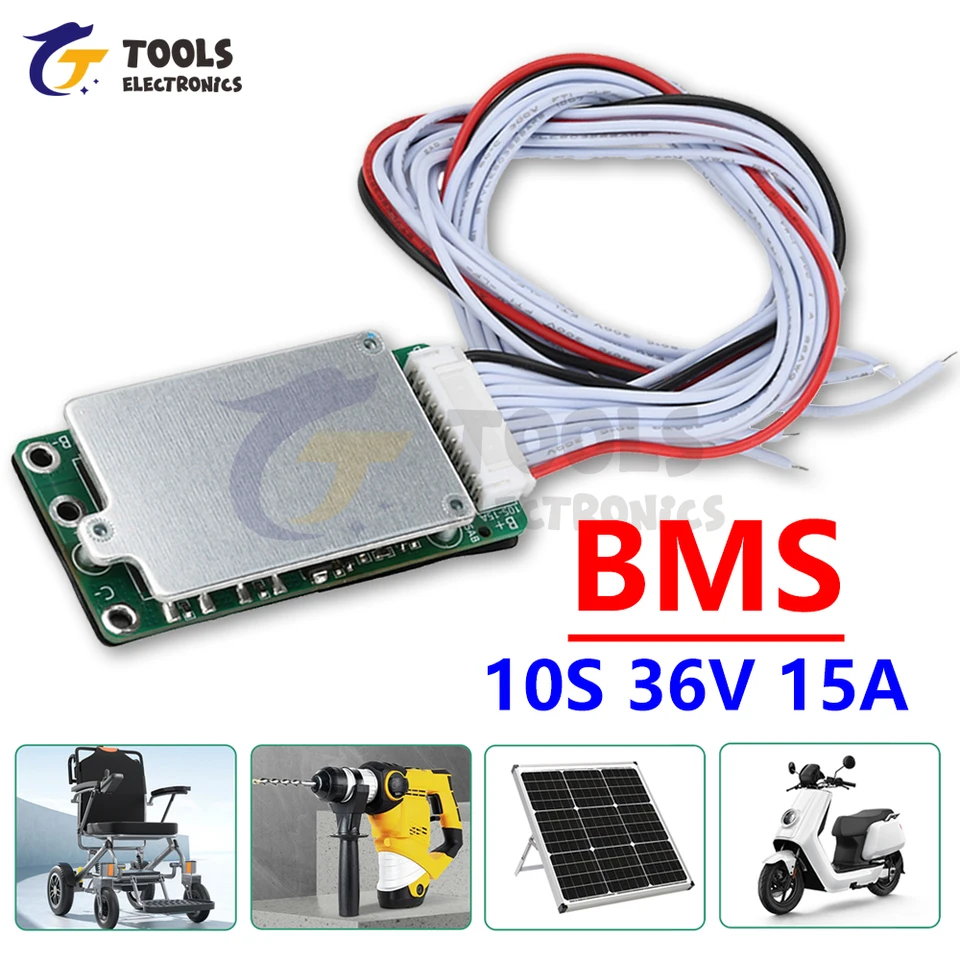

Product Name: 10S Lithium Battery Protection Board
Type: 10S 36V 15A

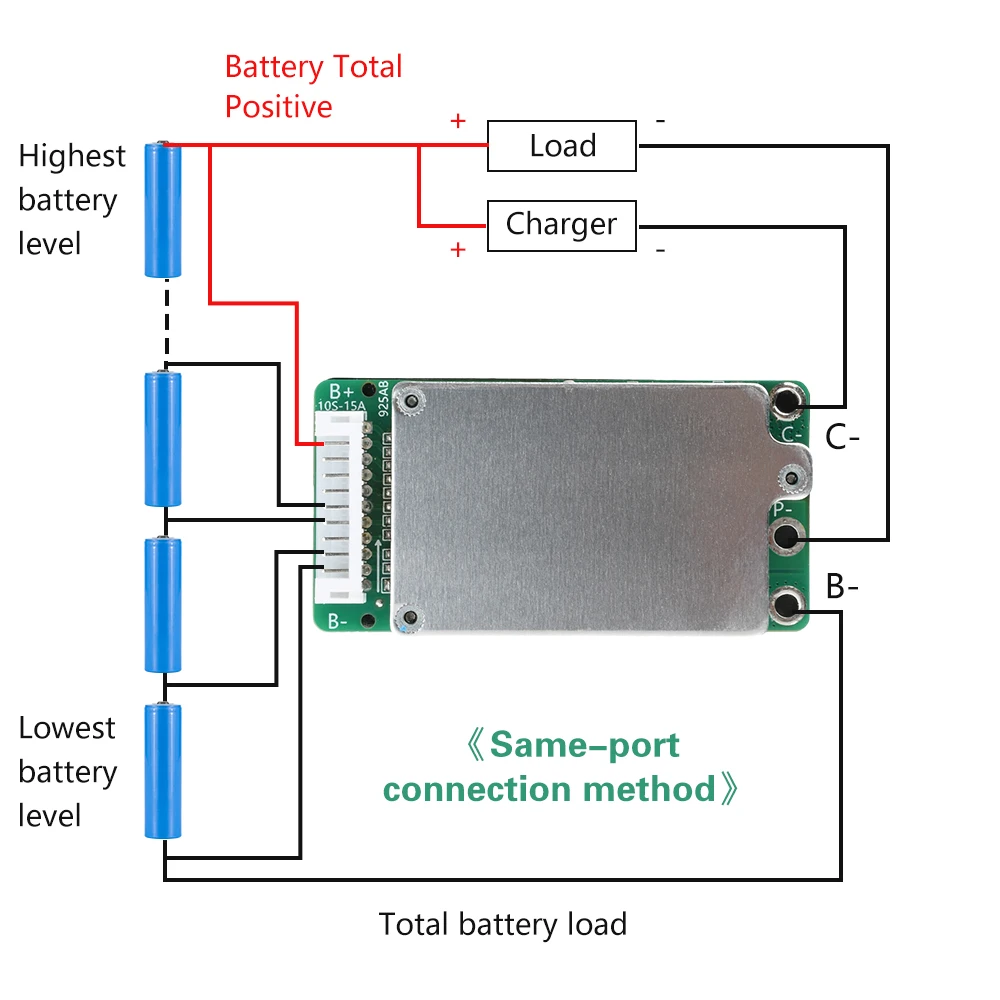

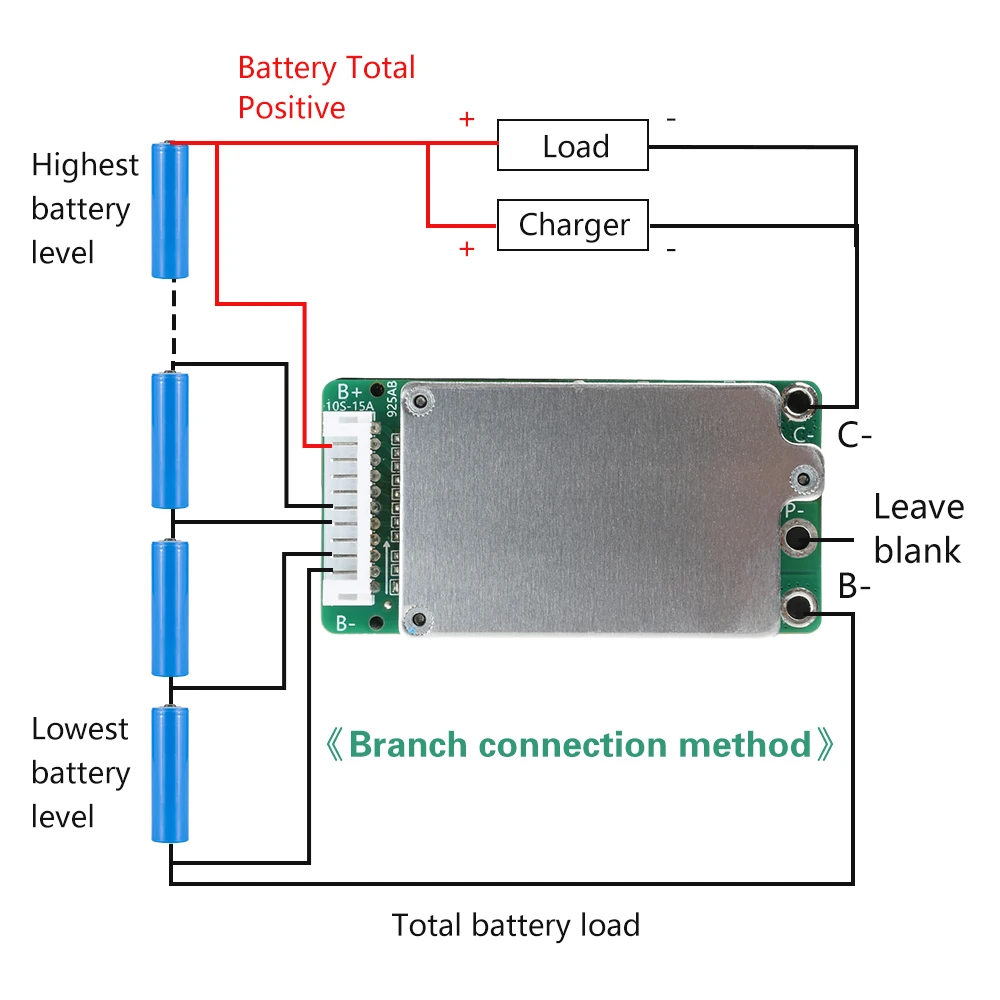

Connection Type: Single/Split Port (Optional)
Operating Power Consumption: ≤40uA
Main Circuit On-Resistance: ≤15mΩ
Temperature Range: -40 to +80°C
Wire Break Protection: Yes
Cable Size: 2.0mm pitch/40cm length
Discharge:
Single-cell Over-discharge Voltage: 2.7V ± 0.08V
Continuous Operating Current: 15A per port 7.5A per port
Instantaneous protection current: 80A
Overcurrent recovery condition: Charge resumed/load disconnected
Short-circuit recovery condition: Charge resumed/load disconnected
Charging:
Single-cell overcharge voltage: 4.25V ± 0.025V
Continuous charge current: 15A
Charger voltage: 56V-60V (recommended)

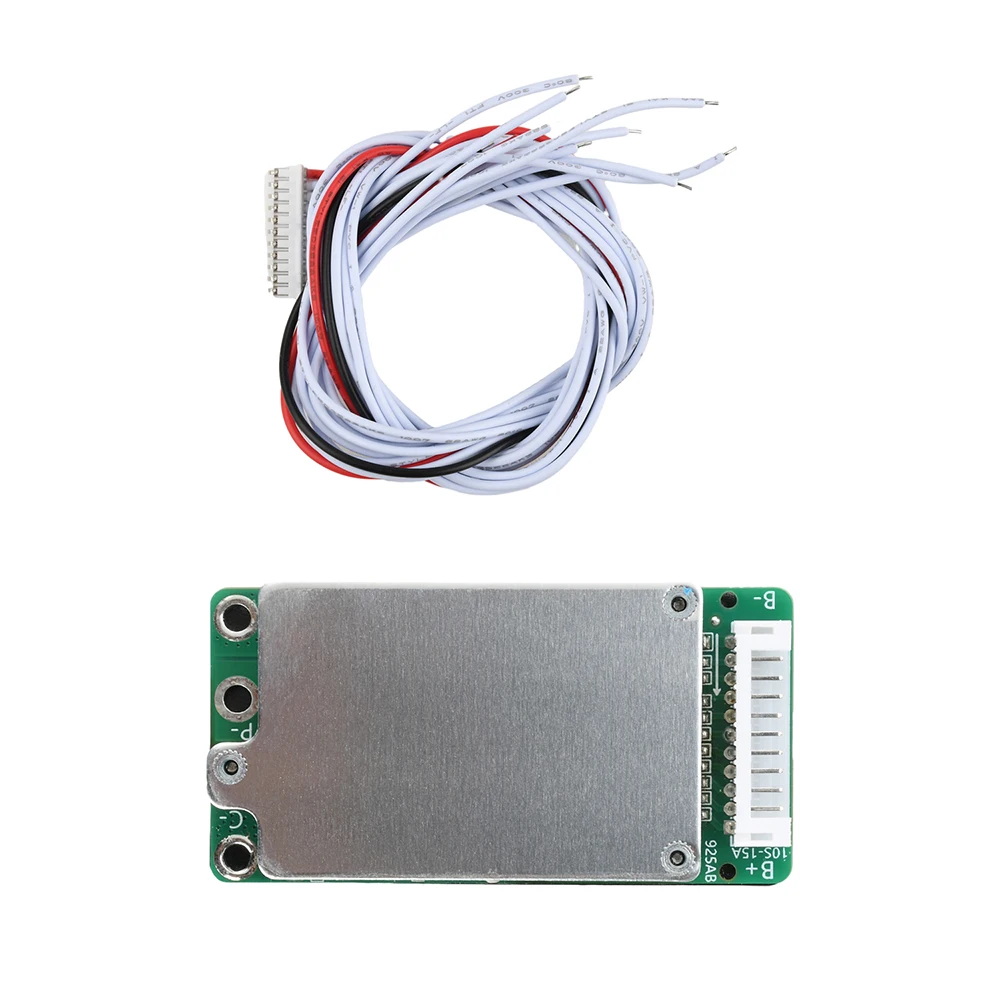

Includes:
Protection board x1

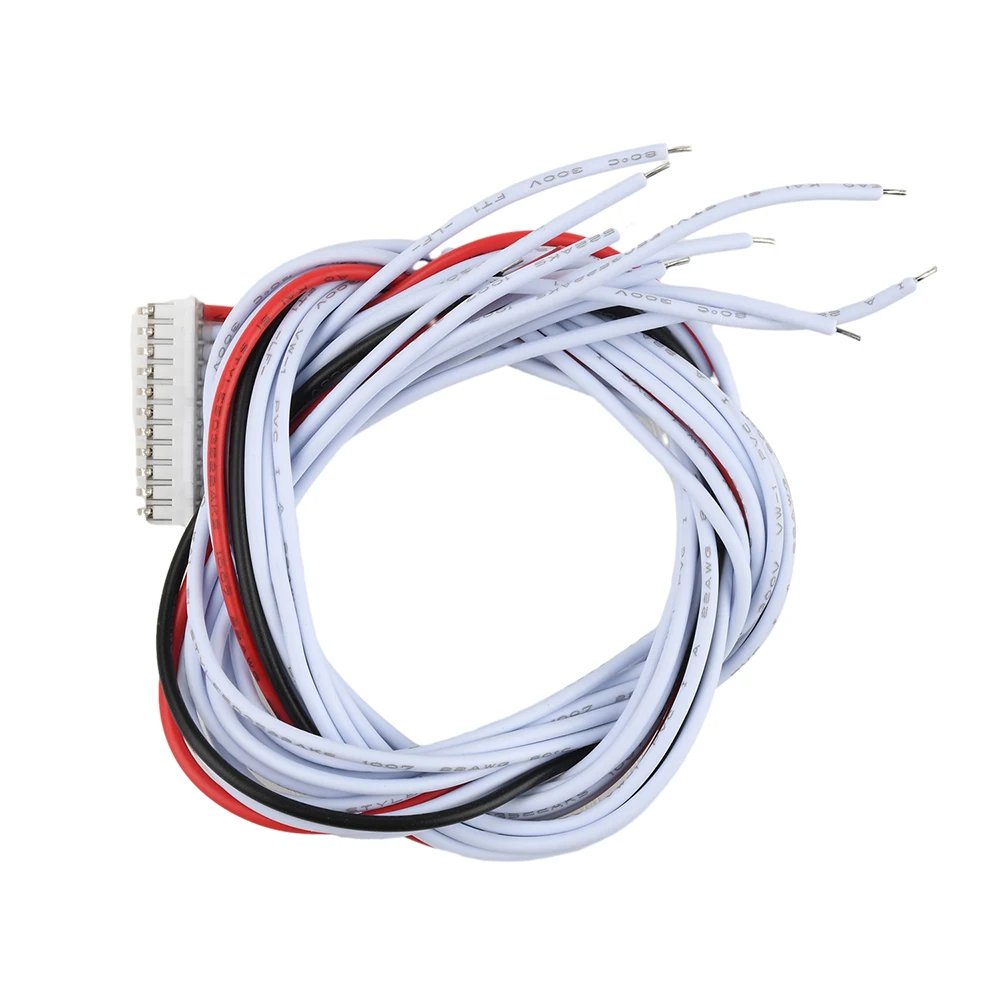

Acquisition cable x1
