Small Type 3.2V LiFePO4 3.7V Li-ion 20A 30A 40A 50A Electric Bike Smart BMS 7S-14S 24V 36V 48V with UART BT
$22.94$26.37
- High-concerned chemical
- none
- Charging Current
- 50A
- Usage Scenario
- Power BMS
- Certification
- CE,EAC,RoHS
- Balance Function
- Passive Balanced BMS
- Handware or Smart
- SMART BMS
- Charge and Discharge Port
- Common Port BMS
- Type
- LI-ION Battery BMS
- Origin
- Mainland China
- Brand Name
- JIABAIDA
- Function
- Overcharge Protection,Over Discharge Protection,Overcurrent Protection,Short Circuit Protection
- Applicable Battery
- 3.2V Lifepo4/3.7V Li-ion Battery
- Number of Strings
- 7S-14S
- Working Current
- 20A-50A
- Size
- 63mm * 52mm * 10mm
- Temperature Sensor
- 1 built-in /1 external
- Bluetooth Function
- Yes and Free
- Communication function
- UART/BT
- Balancing Cables
- Free
- Application field
- E-Bike,E-Motorcycle
Details

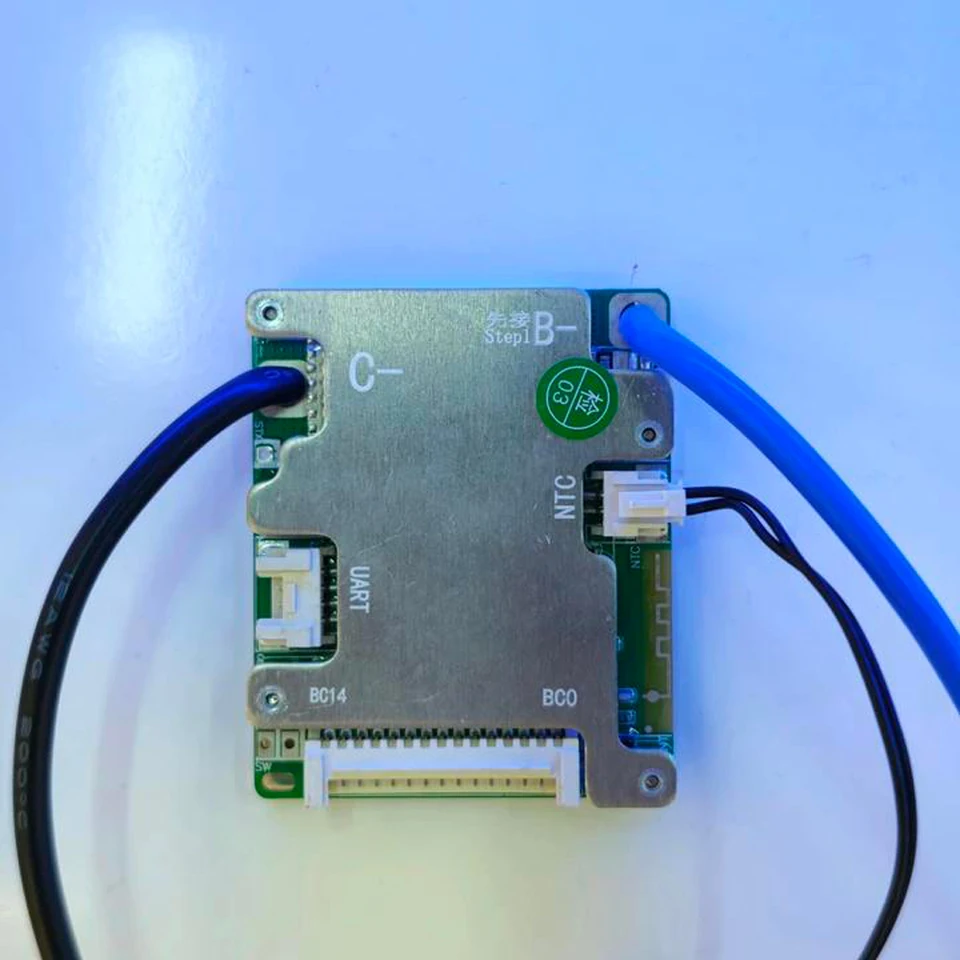

JIABAIDA Smart BMS - SP14S004
JBD-SP14S004 is a software protection board scheme specially designed for 7~14 series lithium battery packs. The whole system adopts O2 front-end acquisition chip + Bluetooth MCU scheme, and some parameters can be flexibly adjusted through the upper computer according to the needs of customers.
① Applicable Battery : Li-ion /LiFePo4

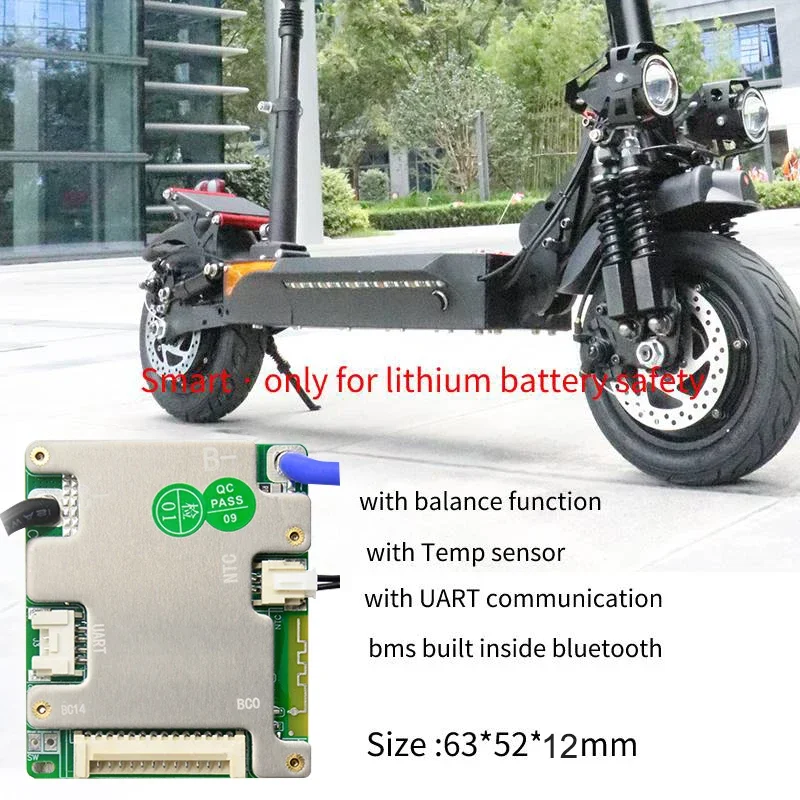

② Automatically Recognize 7S-14S, 63mm * 52mm * 9mm
③ Function Introduction

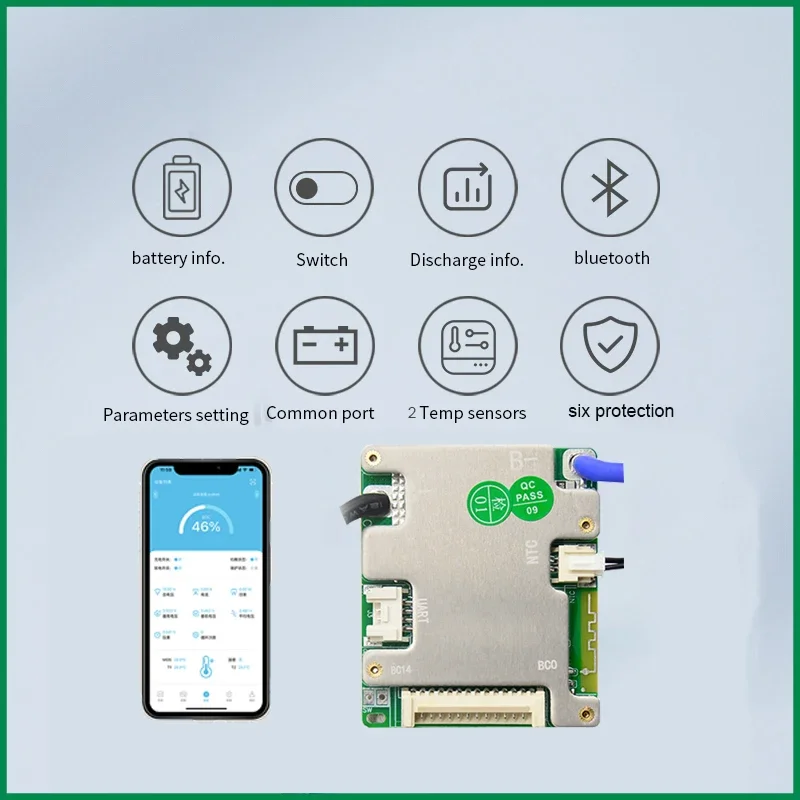

1) Built-in Bluetooth- Phone
IOS version needs to pay to change the parameters (need to be within the specified range)
Android version can change the parameter settings
2) UART - Computer (Set parameters)
④ Download link:
1) Phone-"Xiaoxiang BMS"
IOS: Search it in the APP STORE
Android: Search in Google Store
2) Computer-JIABAIDA Tools (UART)
⑤ Package : BMS with built-in Bluetooth * 3 NTC * Wires
⑥ Attention :
