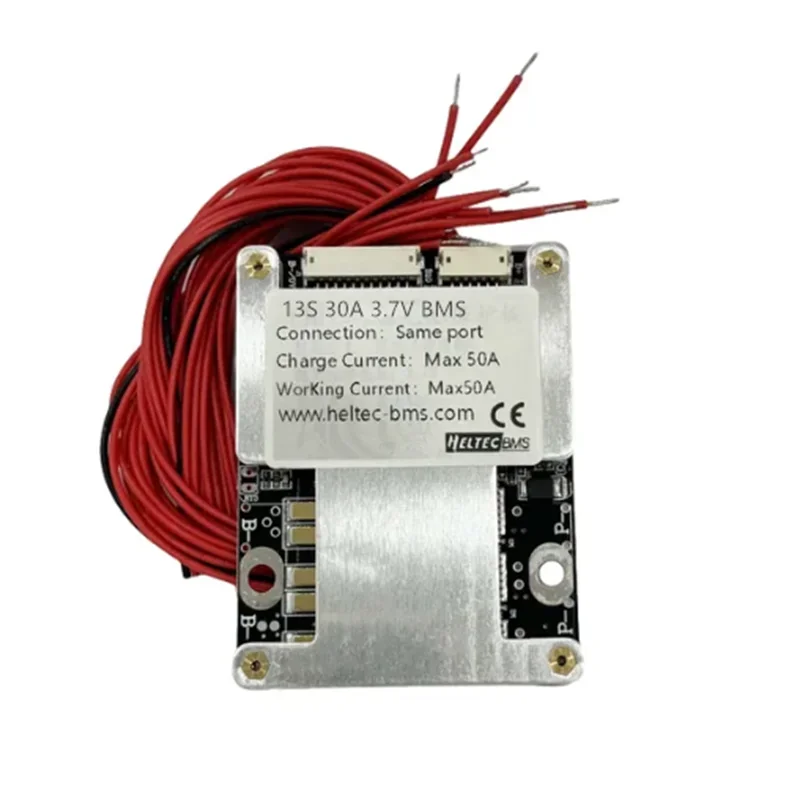

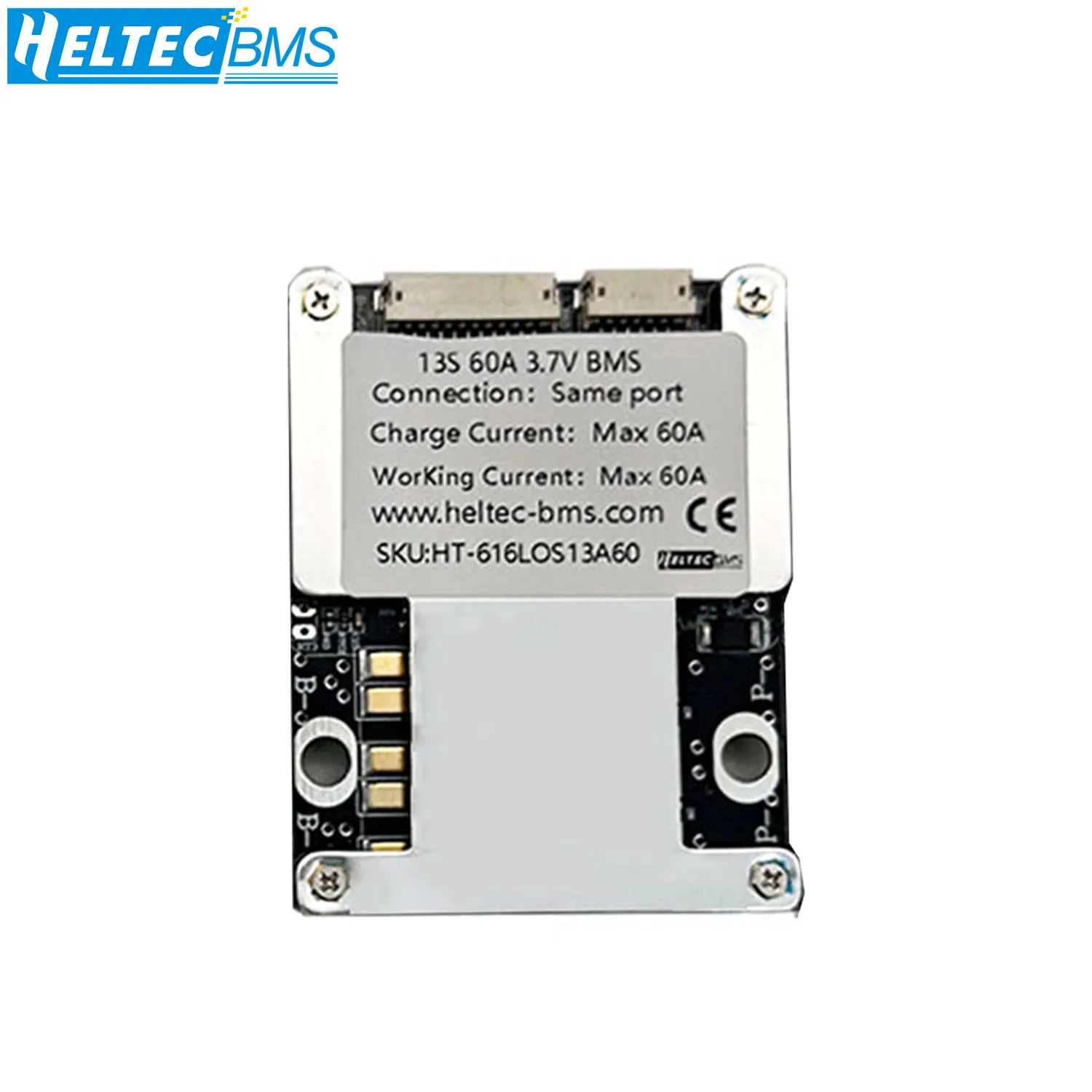

13S 14S BMS 48V 52V 30A 40A 50A 60A 80A with Balancing Lithium Battery Electric Bicycle/Scooter/Solar Energy Storage BMS

4.7

$9.67Updated 9/28/26, 10:45 PM

Color: 13S 30A 3.7V Same

High-concerned chemical: none
Charging Current: 30A
Usage Scenario: Power BMS,Energy Storage BMS
Certification: CE
Balance Function: Passive Balanced BMS
Handware or Smart: Handware BMS
Charge and Discharge Port: Common Port BMS
Type: LI-ION Battery BMS
Origin: Mainland China
Brand Name: Heltecbms
Function: Overcharge Protection,Over Discharge Protection,Overcurrent Protection
STRINGS: 13s 14s
Charge Current: 30a 40a 50a 60a 80a

Details

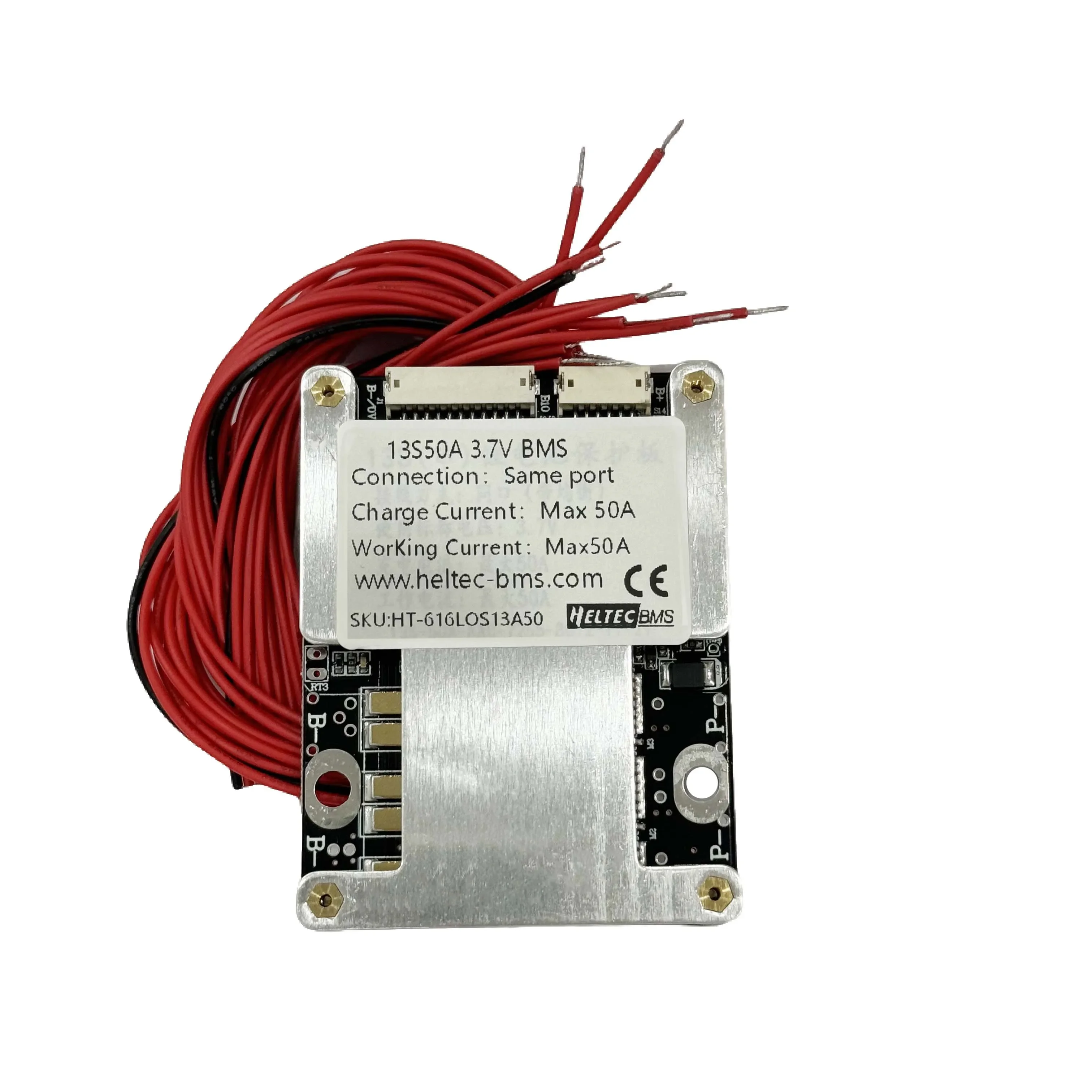

13S 30A 40A 50A 3.7V Same Port Charge protection voltage: 4.25V Charge protection release voltage: 4.2V Discharge protection voltage: 2.8V Discharge release voltage 3.0V Balanced voltage: 4.22V Balanced current: 100MA Maximum continuous overcurrent: 30A 40A 50A Peak current:90A/120A/180A Size:72*55*8/14mm

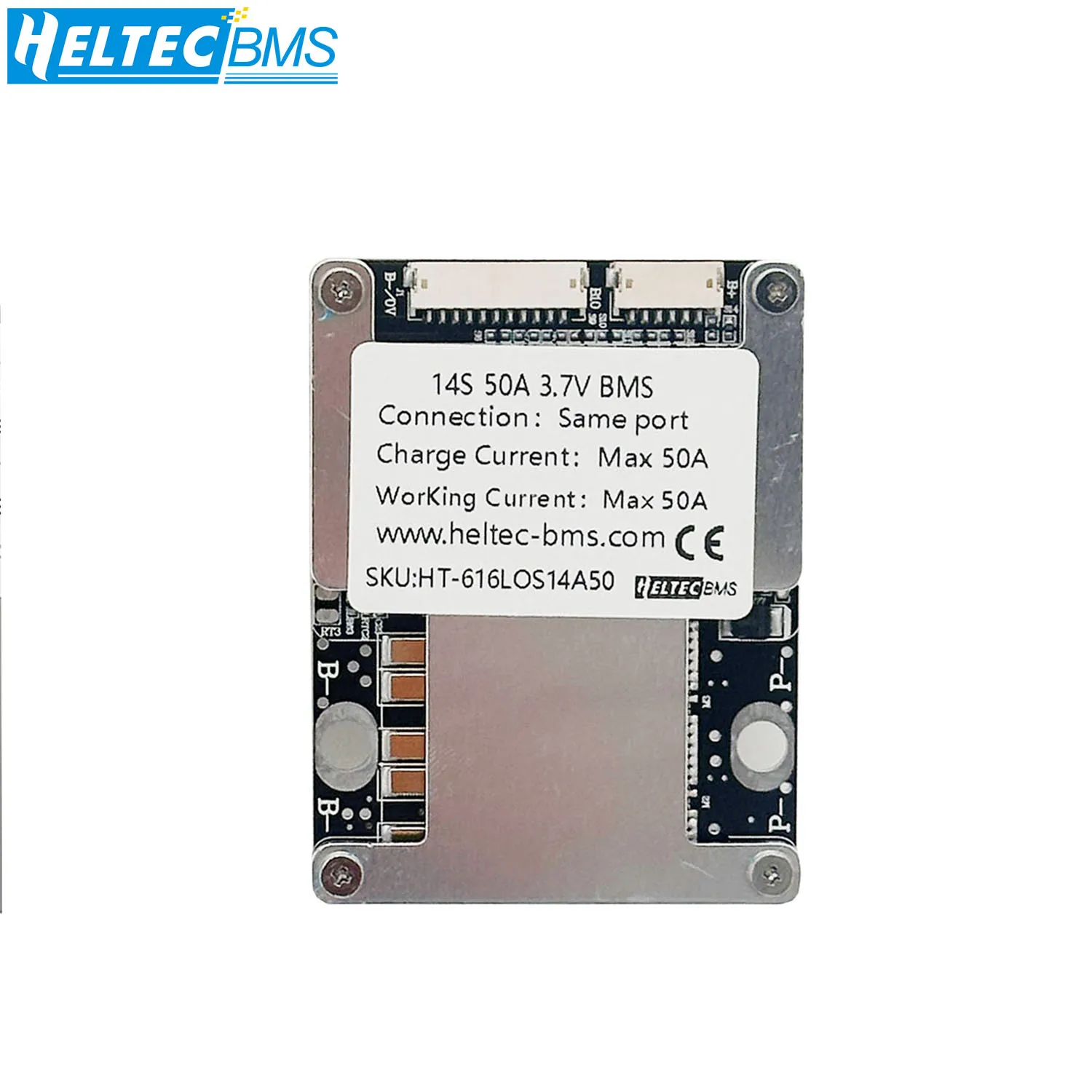

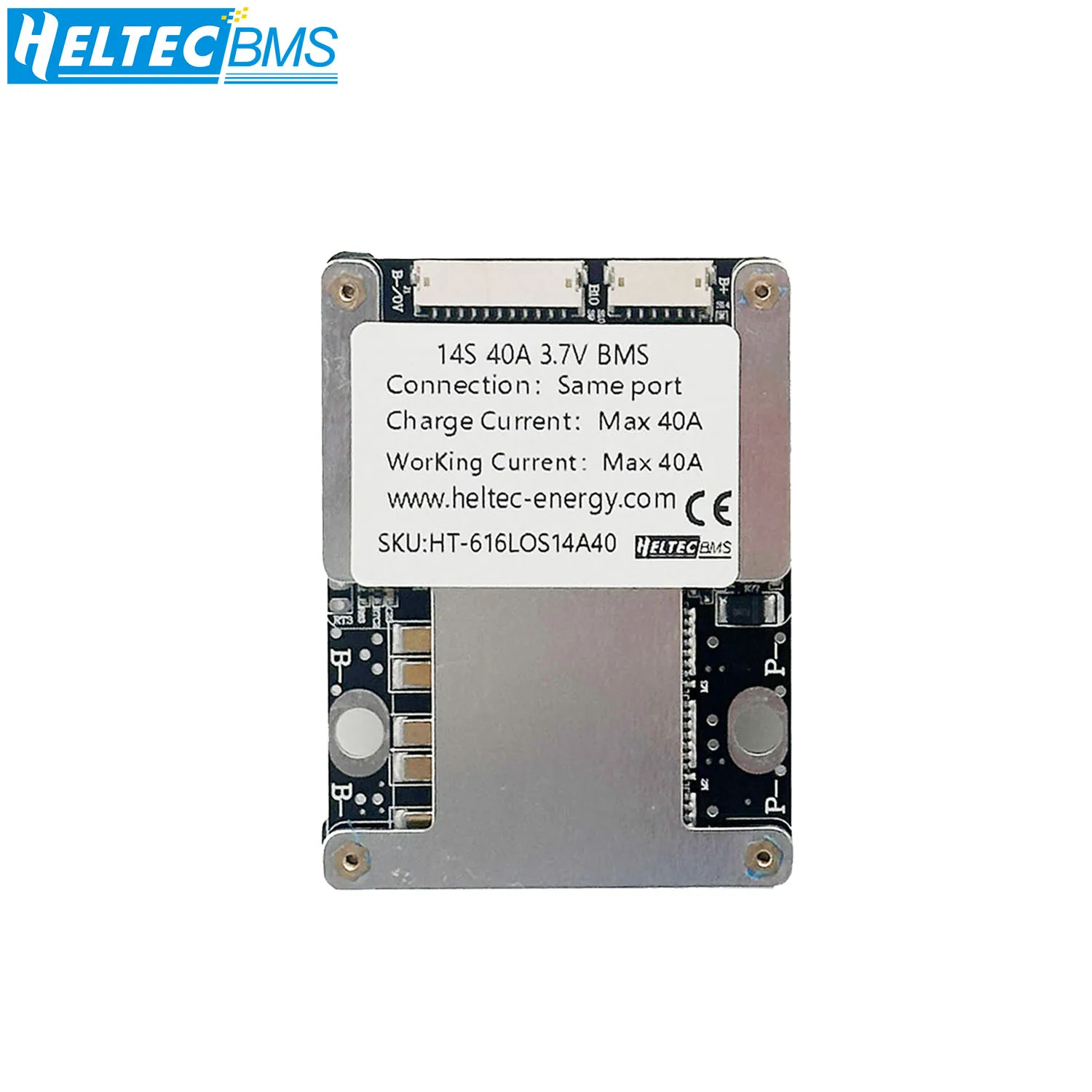

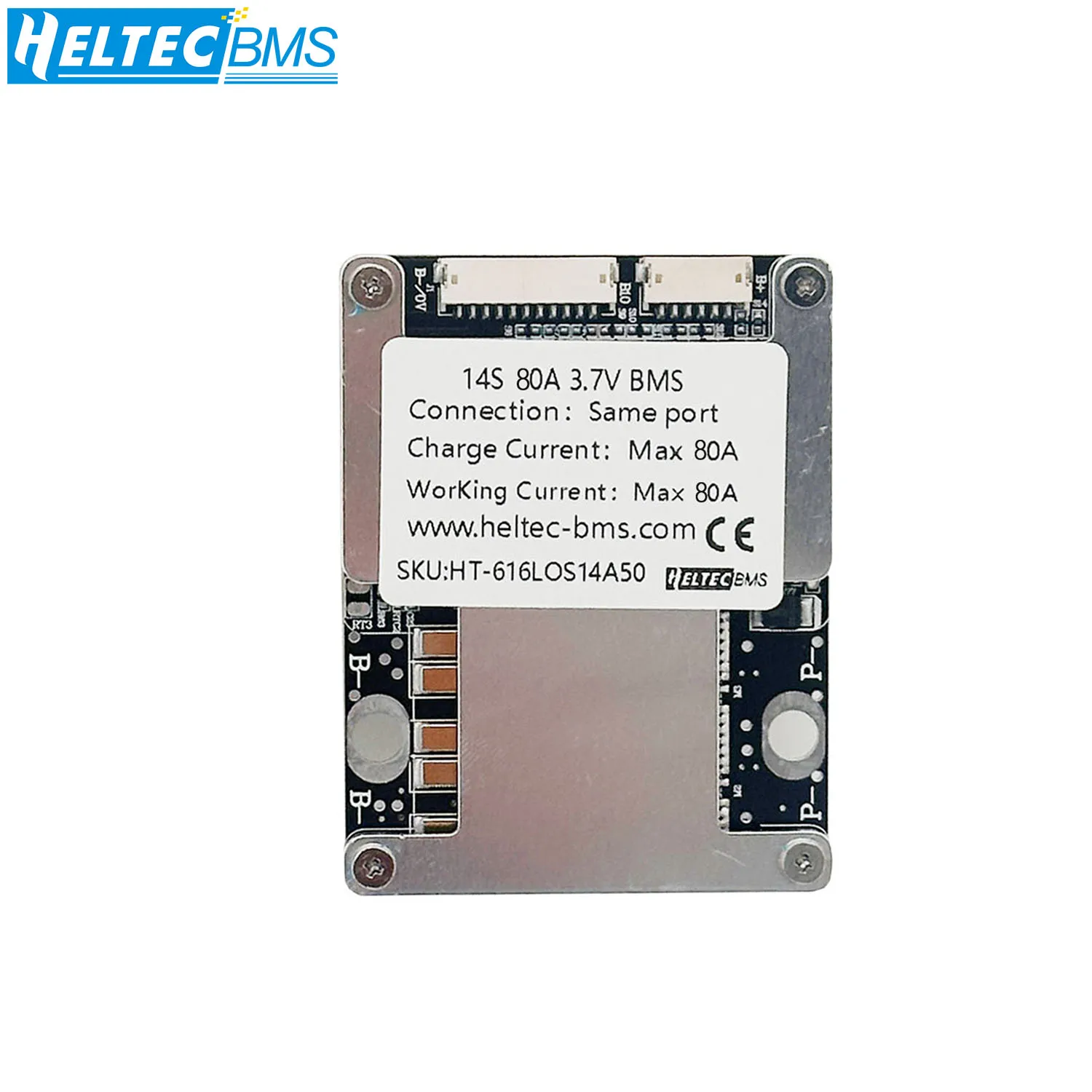

13S 14S 30A 50A 60A 80A3.7V Same Port Size: 72*55*8mm Overcharge protection: 4.25v±0.25v Charging recovery: 4.2V±0.25v Over-discharge protection: 2.8v±0.25v Discharge recovery: 3.0v±0.25v Maximum continuous current: 30A/50A/60A/80A Peak Current: 90A/150A/180A/240A Balance current: 80 mA Balanced starting voltage: 4.22v±0.25v Charging recovery Self-consumption: ≤35uA
